Stolperbeats

Stolperbeats, roughly translating to "beats tripping over themselves", is a drum trigger sequencer designed to create shuffled beats influenced by the gritty, captivating push-and-pull grooves from the golden age of Hiphop.

We have always been fascinated with taking our beats offgrid to give them more fluidity and life.

This module allows you to effortlessly switch between the shuffle and groove you had to nudge together in a DAW; until now!

Installation#

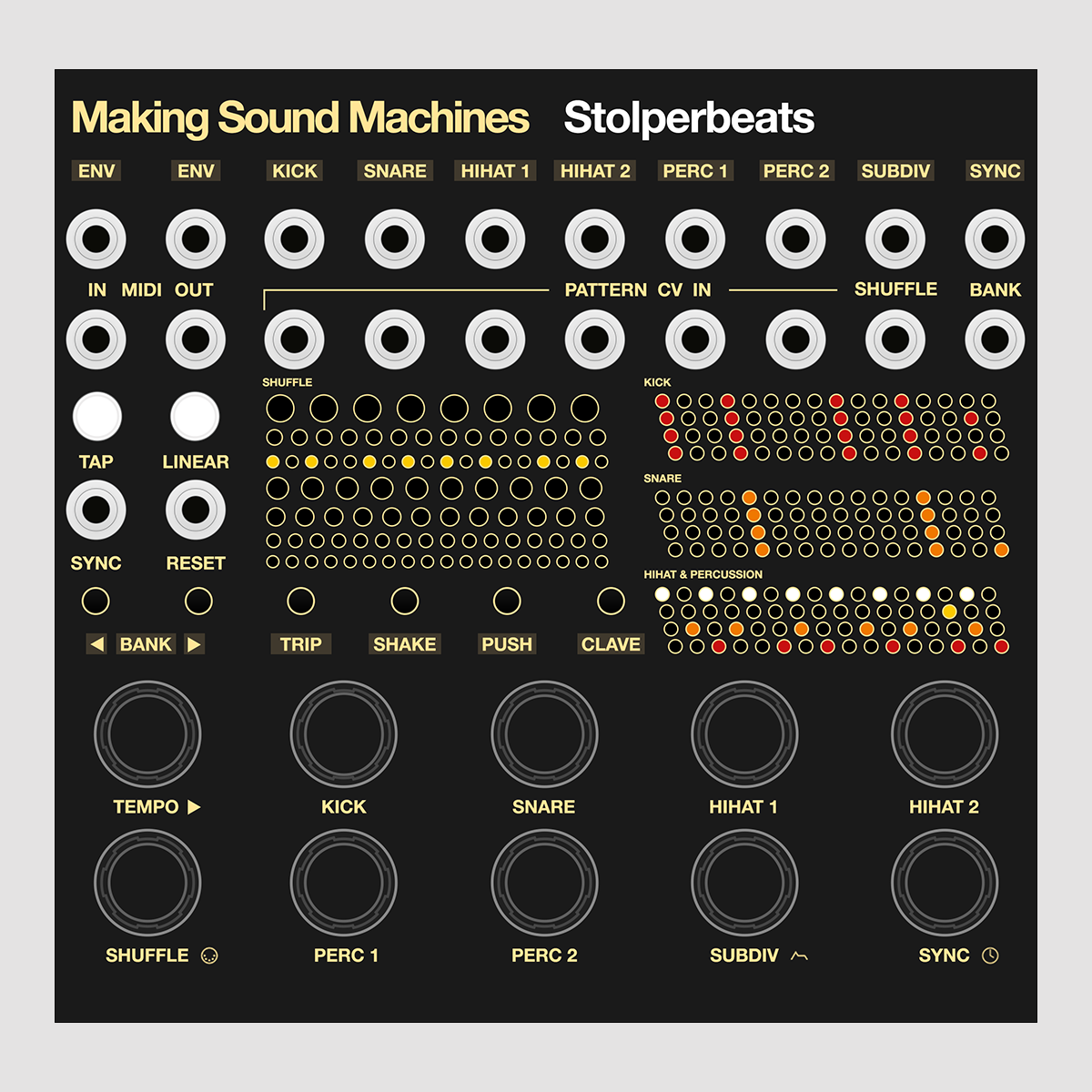

Stolperbeats

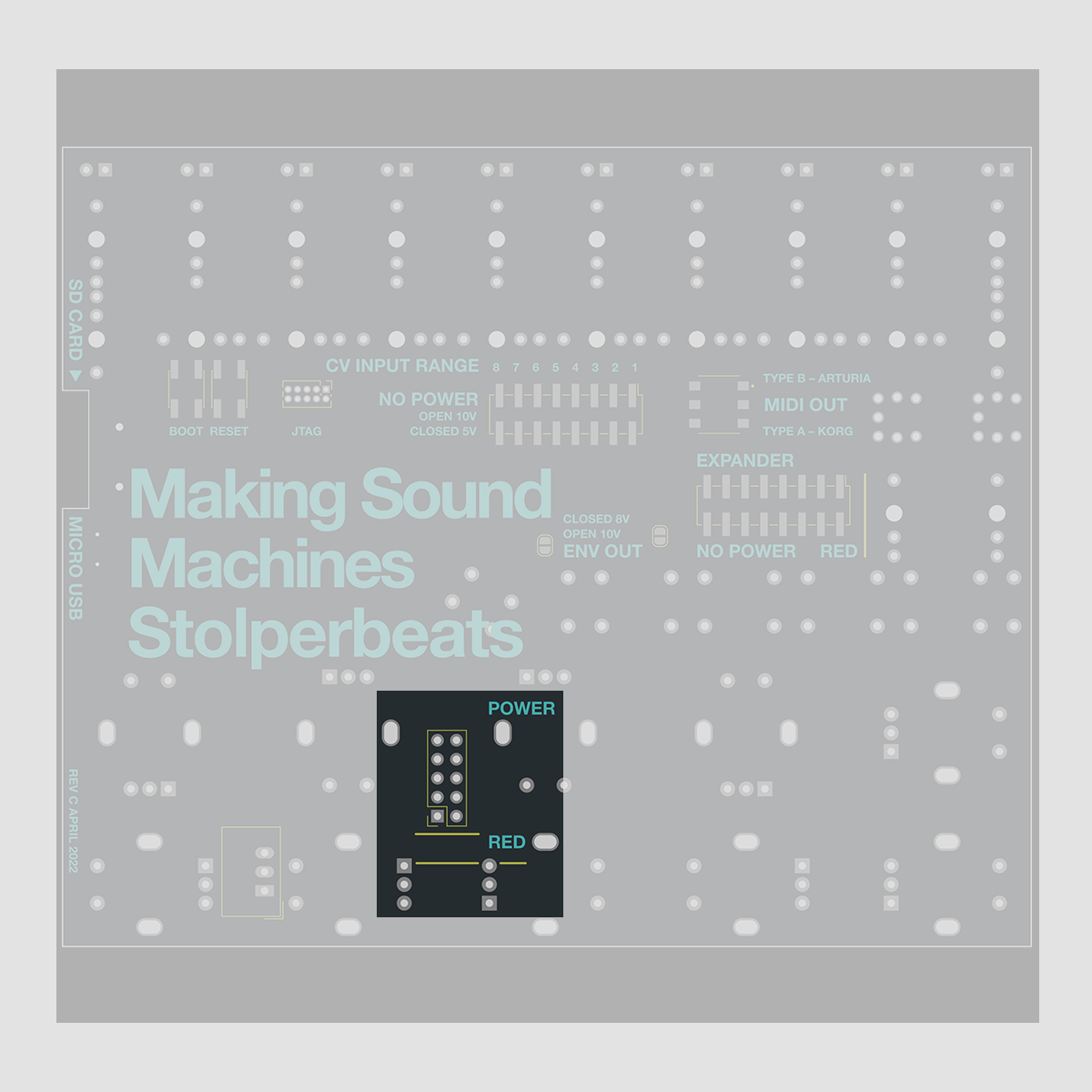

Stolperbeats requires a -12V / +12V Eurorack power supply. Connect the 2x5 boxed pin header marked Power on the back of Stolperbeats to the bus board of your Eurorack case using the ribbon cable.

The red stripe on the ribbon cable needs to match the Red Stripe mark on both Stolperbeats and bus board. The Expander is passive. Do not connect it to Power.

The Power consumption is:
+12V 280 mA / -12V 13 mA

Press Play ►#

Stolperbeats

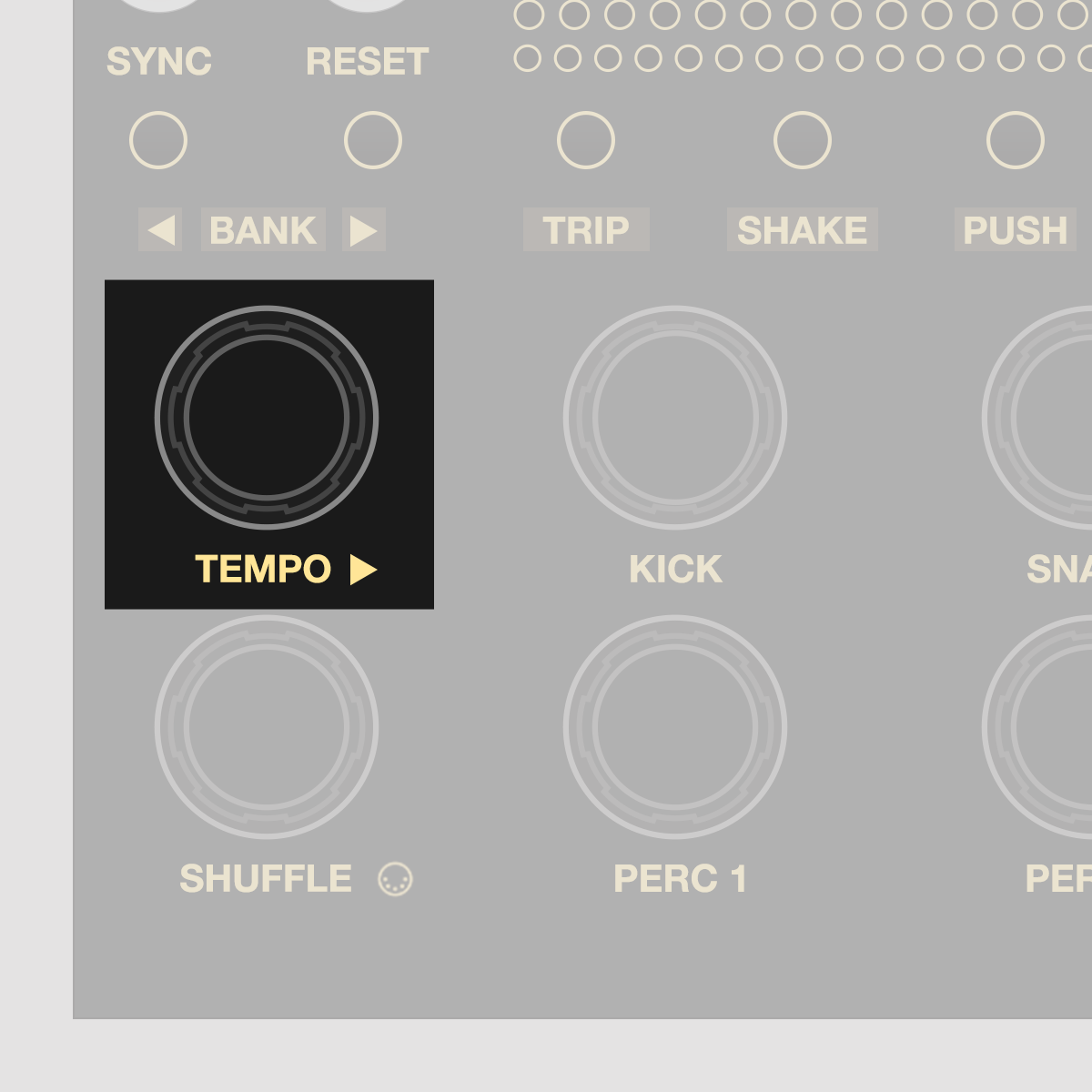

Press the Tempo Encoder to start / stop the sequence.

Rotate the Tempo Encoder to set a tempo from 30 to 300 bpm in increments of one.

Nudge it to display the tempo. With a clock at Sync In, Stolperbeats can be clocked externally.

Select Pattern#

Stolperbeats

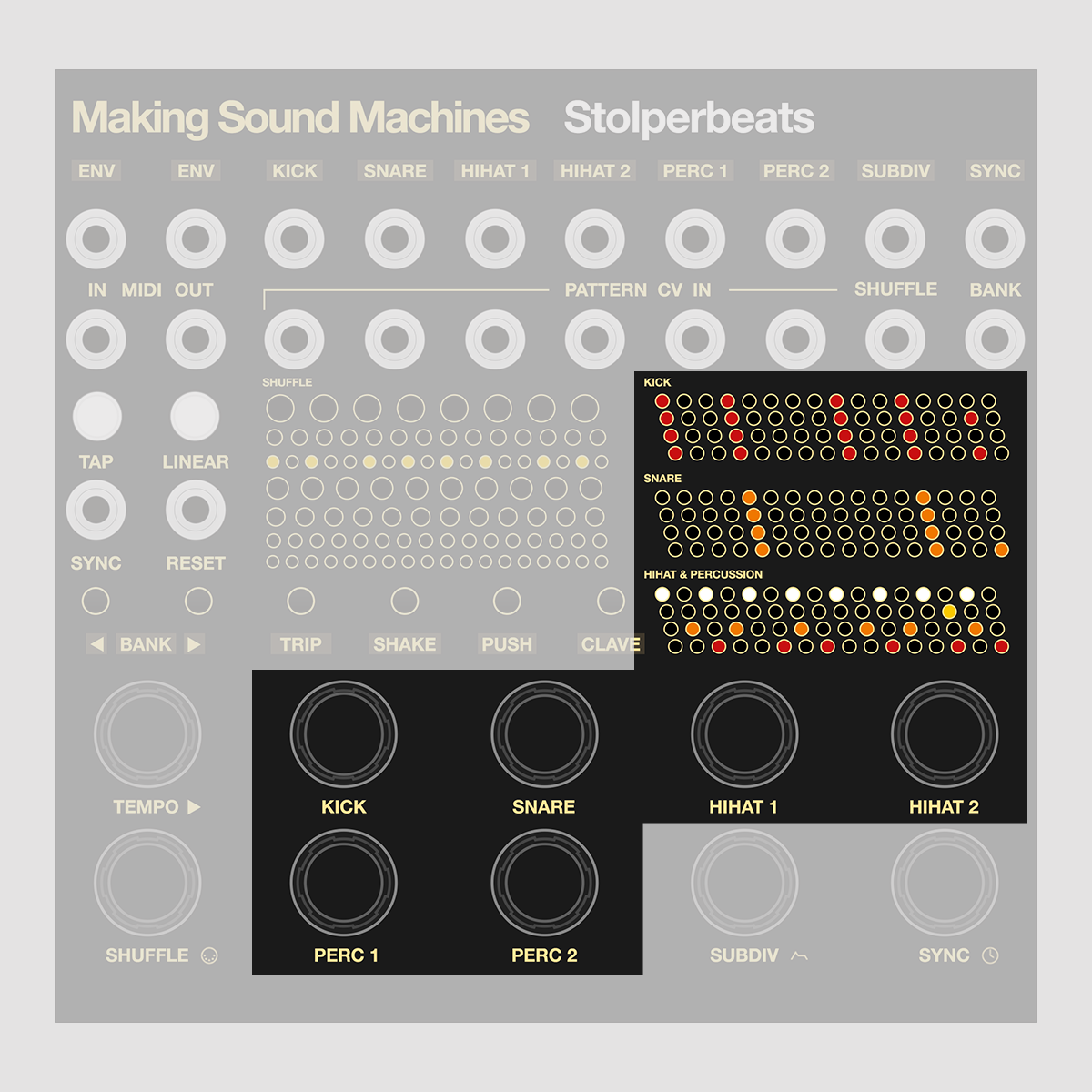

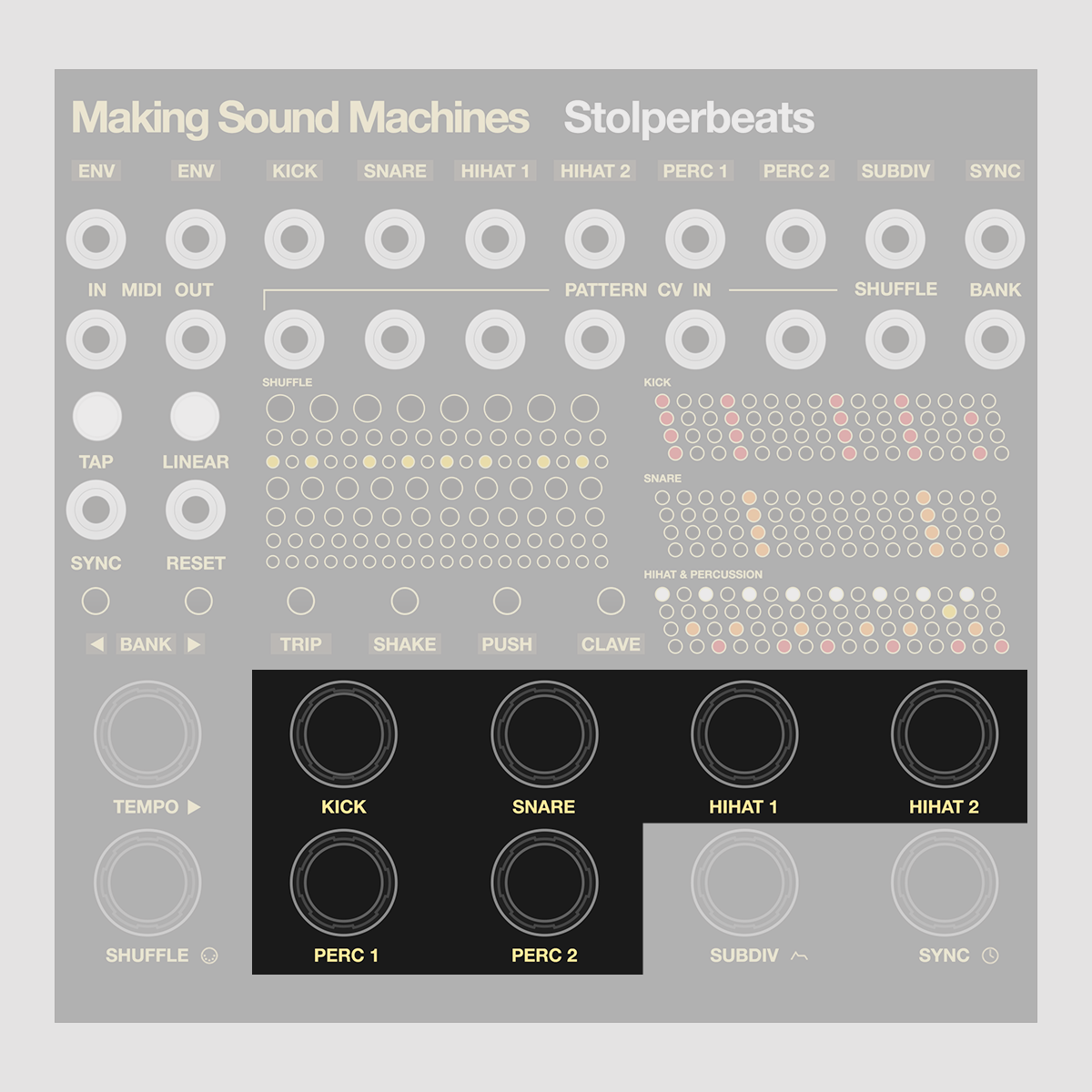

Rotate the instrument encoders to select a pattern for each track: Kick, Snare, Hihat 1+2, Perc 1+2. There are 24 Patterns per Bank. Click to mute the track.

Stolperbeats

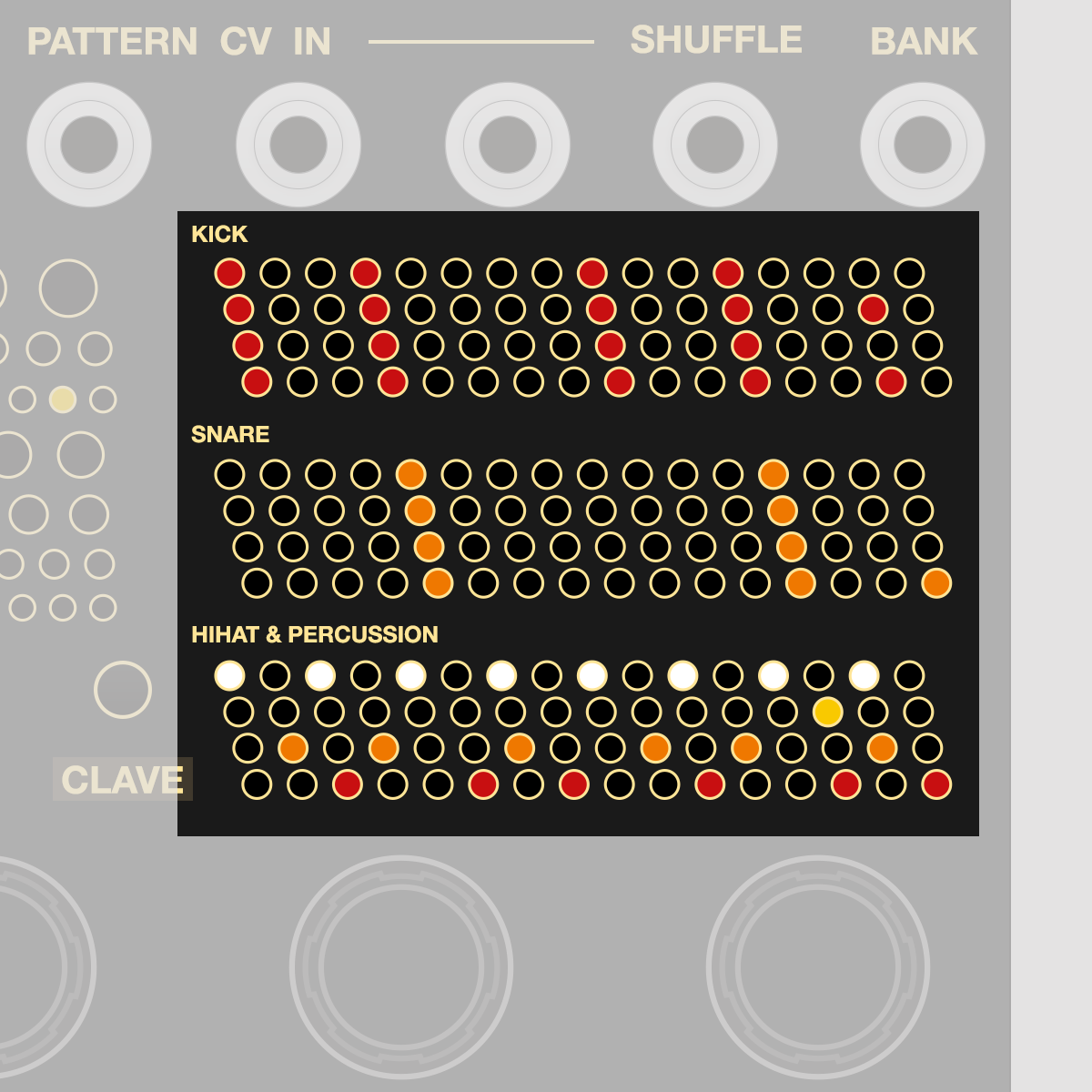

Stolperbeats displays the patterns it currently plays in a 16-step grid format via its LED matrix.

  Kick 4 x 16 64 steps 4 bars
  Snare 4 x 16 64 steps 4 bars
○  Hihat 1 1 x 16 16 steps 1 bar
  Hihat 2 1 x 16 16 steps 1 bar
  Perc 1 1 x 16 16 steps 1 bar
  Perc 2 1 x 16 16 steps 1 bar

Stolperbeats

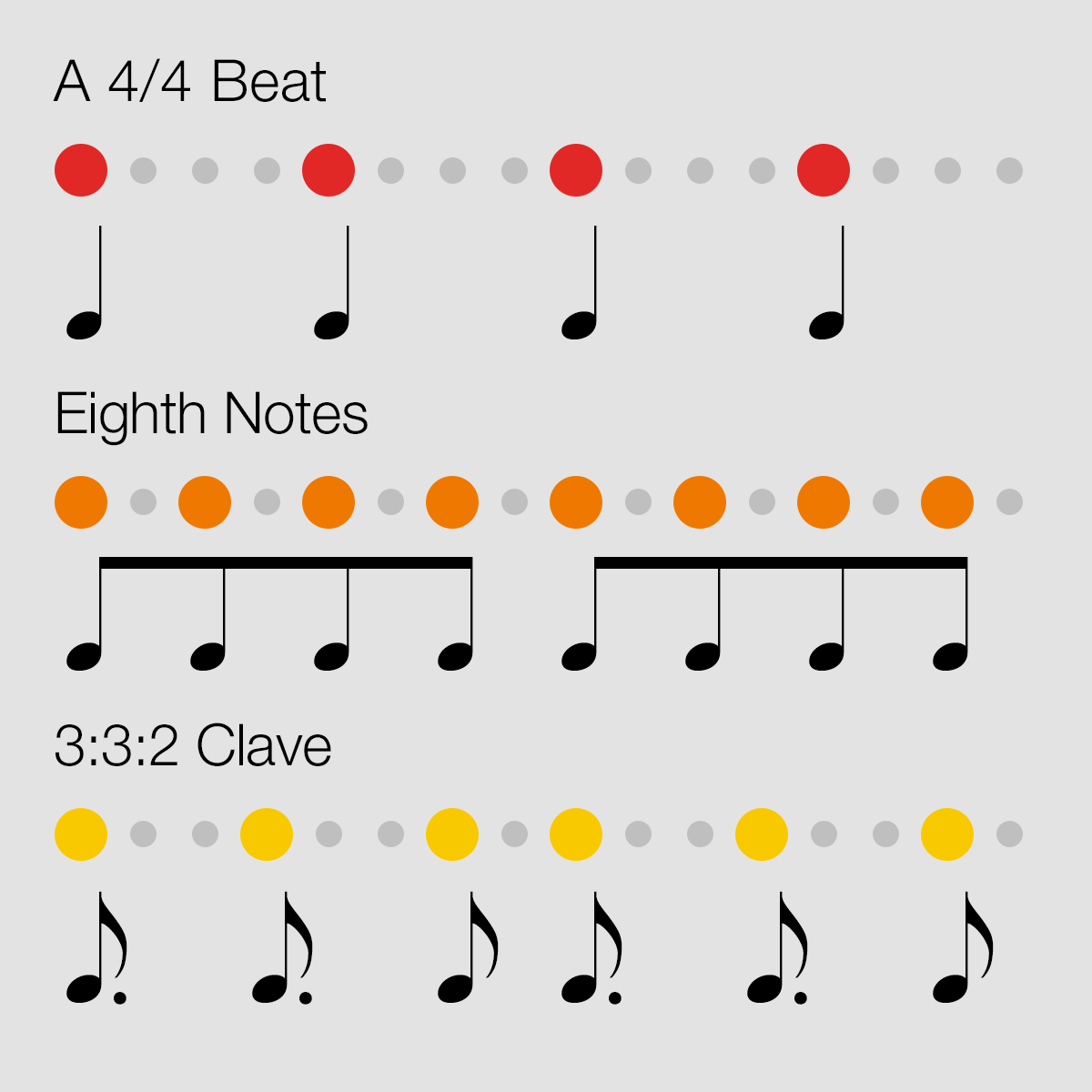

Imagine each step representing a 16th note in a 4/4 bar, before a Shuffle, Timing and Feeling are applied.

Select Shuffle#

Stolperbeats

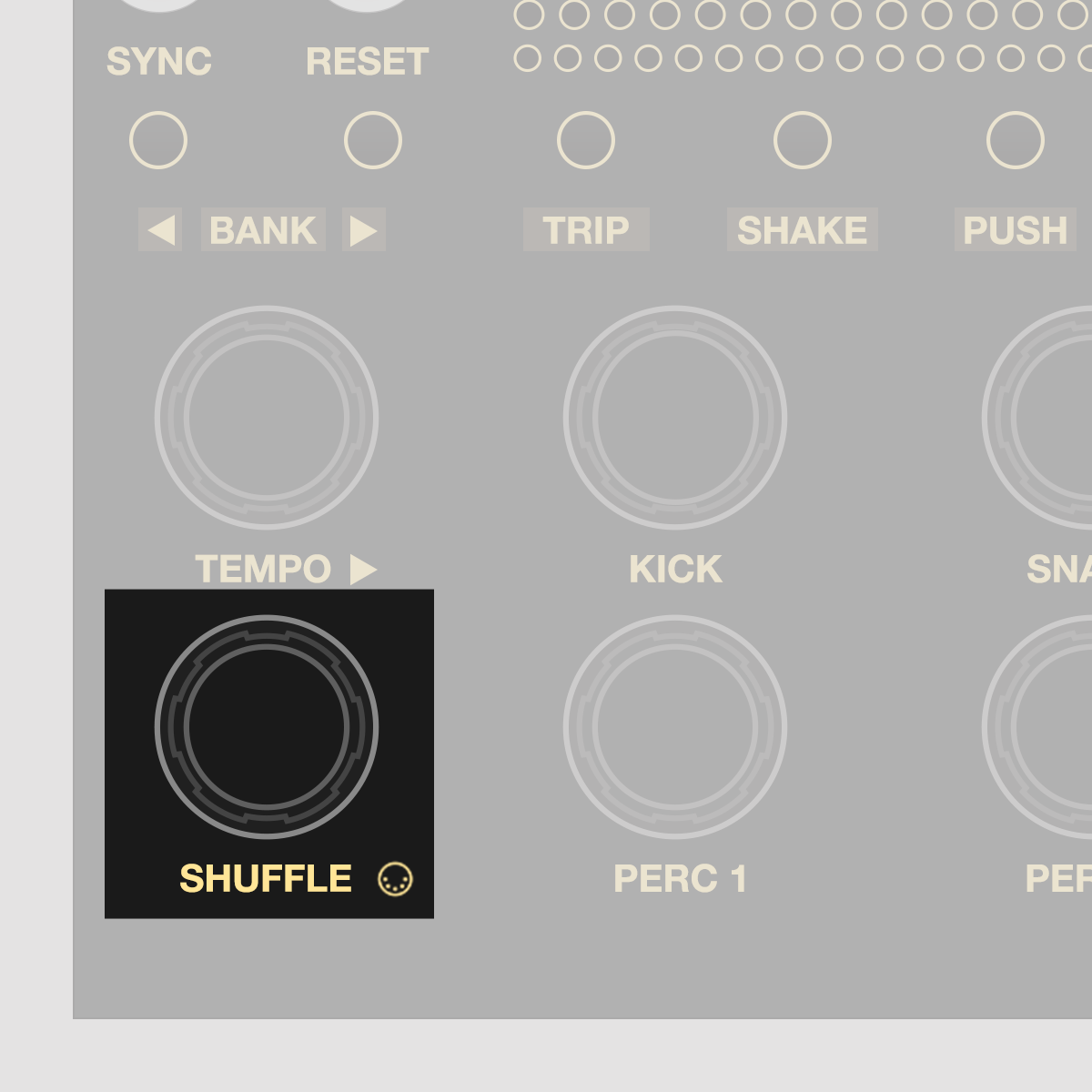

Rotate the Shuffle Encoder to select one of 7 Shuffles from the left hand matrix. The further down the matrix, the more pronounced the amount of Shuffle becomes.

Stolperbeats

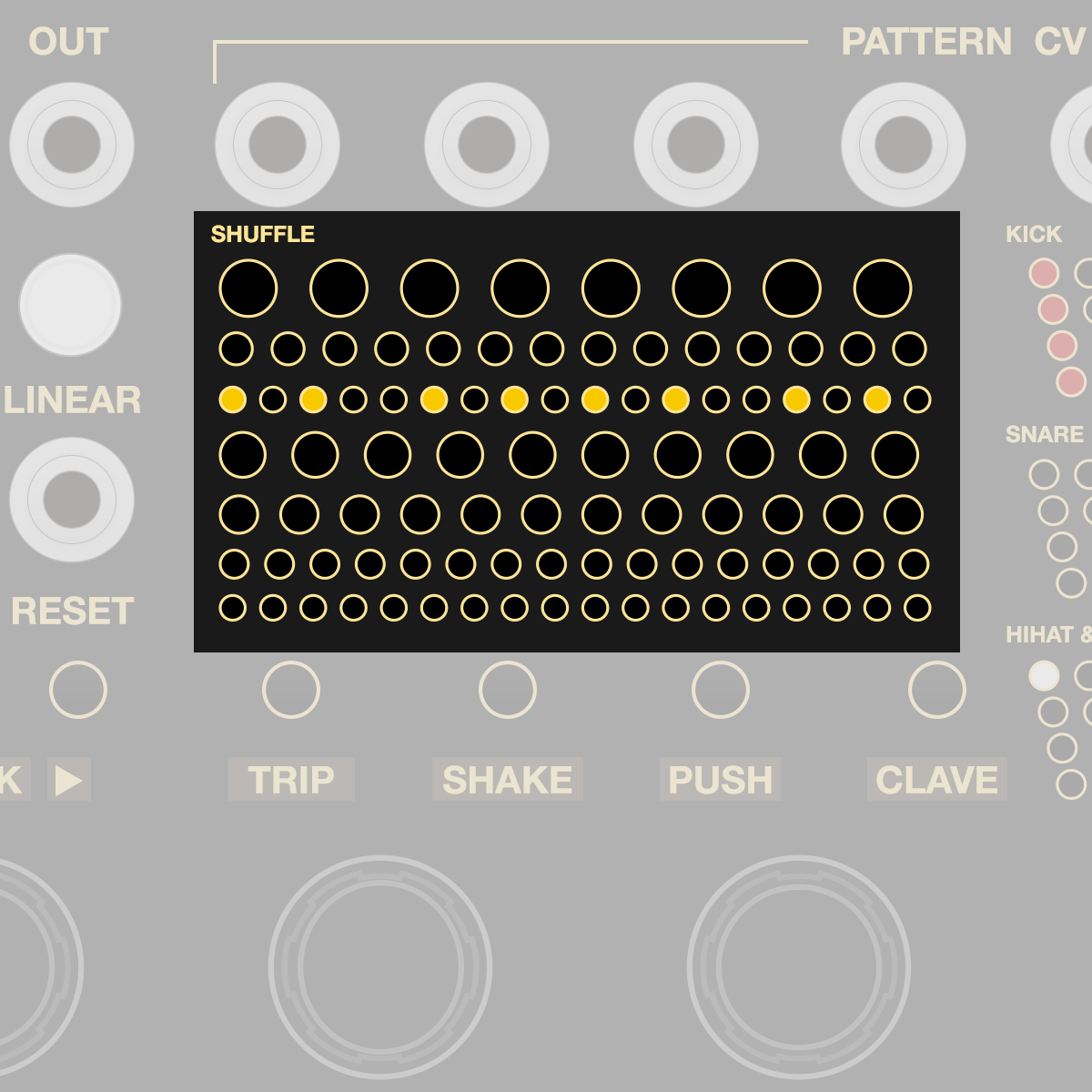

The Shuffle Display is a visual approximation of how 8 steps are distributed in time.

Stolperbeats

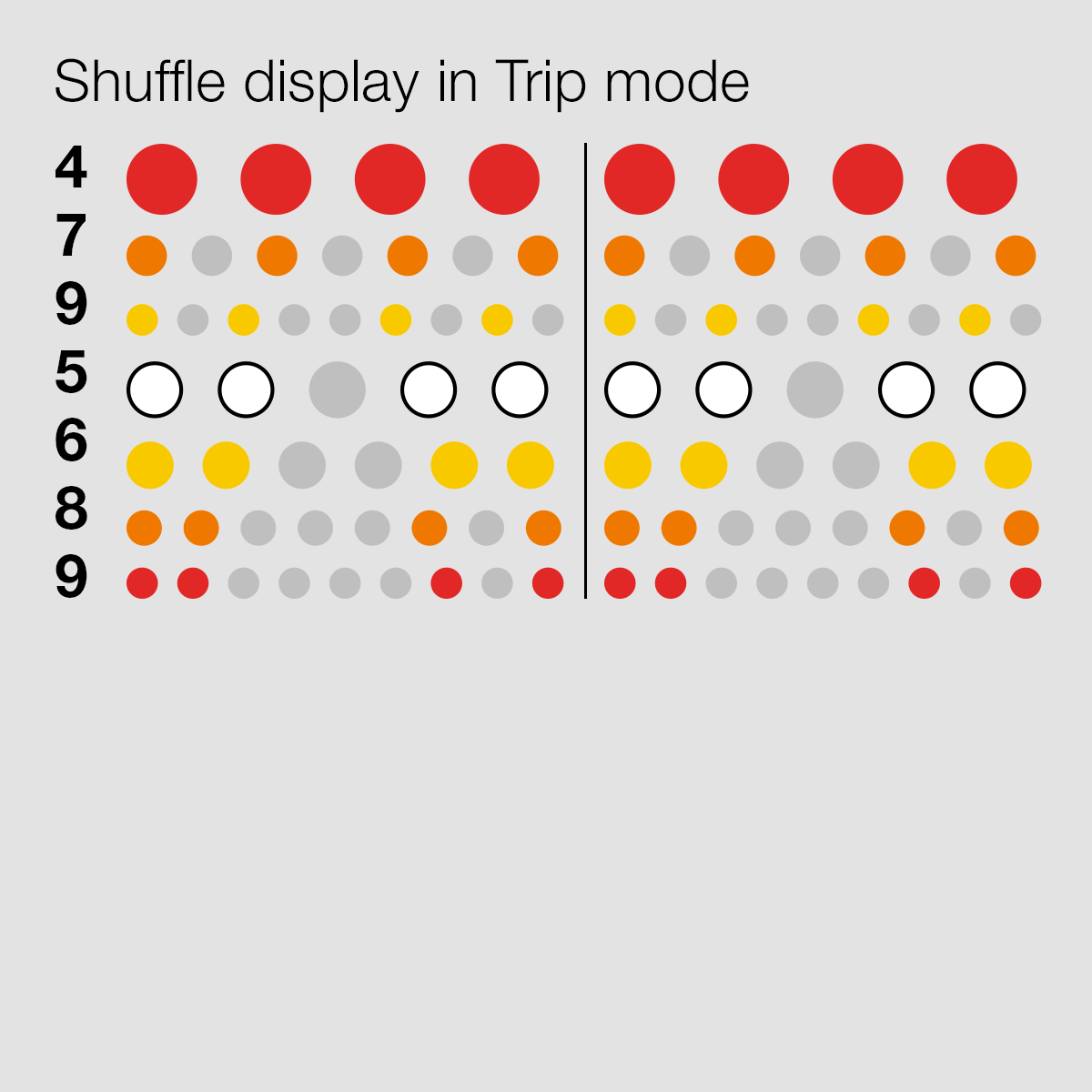

Let's look at 2x4 steps. The number of subdivisions changes per line, depending on the shuffle, but the actual steps are always 8.

Here's how you would interpret the display for the Trip Timing:

  4  Unshuffled rhythm
  7  Last step is rushed
  9  A gap in the middle
○  5  A wider gap in the middle
  6  A fairly large gap in the middle
  8  Rushed in beginning and end
  9  Rushed in beginning and end

Timing and Feeling#

Press the Trip, Shake, Push and Clave Buttons to select a Timing. This has a profound impact on the Shuffle:

Trip  N-Tuplet grooves tripping over themselves
Shake  The Golden Age of Hip Hop 8th note swing
Push  Gently makes time for the 4/4 downbeats
Clave  3:3:2 stay fixed, the rest swings around that

Press again to cycle through four Feelings, indicated by the backlit colour, to apply subtle rhythmic variants:

  Tight  All Instruments Shuffle together in tandem
  Rolls  Hihat 2 is substituted with a trigger burst
  Flam  Kick and Snare get very slightly delayed
○  Slop  Like Flam but Hihats follow Kick and Snare

Edit Pattern#

Stolperbeats

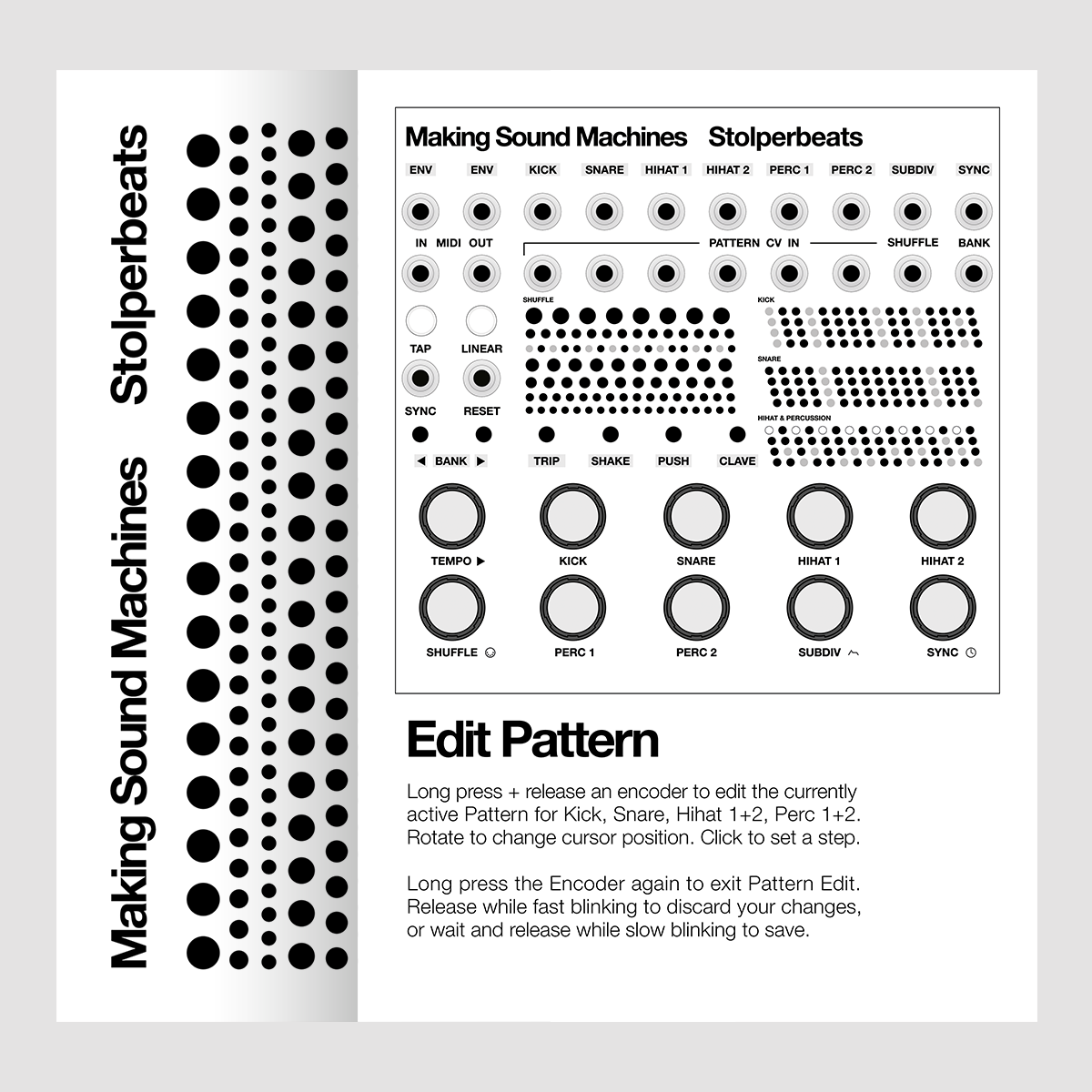

Long press + release an encoder to edit the currently active Pattern for Kick, Snare, Hihat 1+2, Perc 1+2. Rotate to change cursor position. Click to set a step.

Long press Instrument Encoder to exit Pattern Edit. Release while fast blinking to discard your changes. Release while slow blinking to save your changes.

Trigger Out#

Stolperbeats

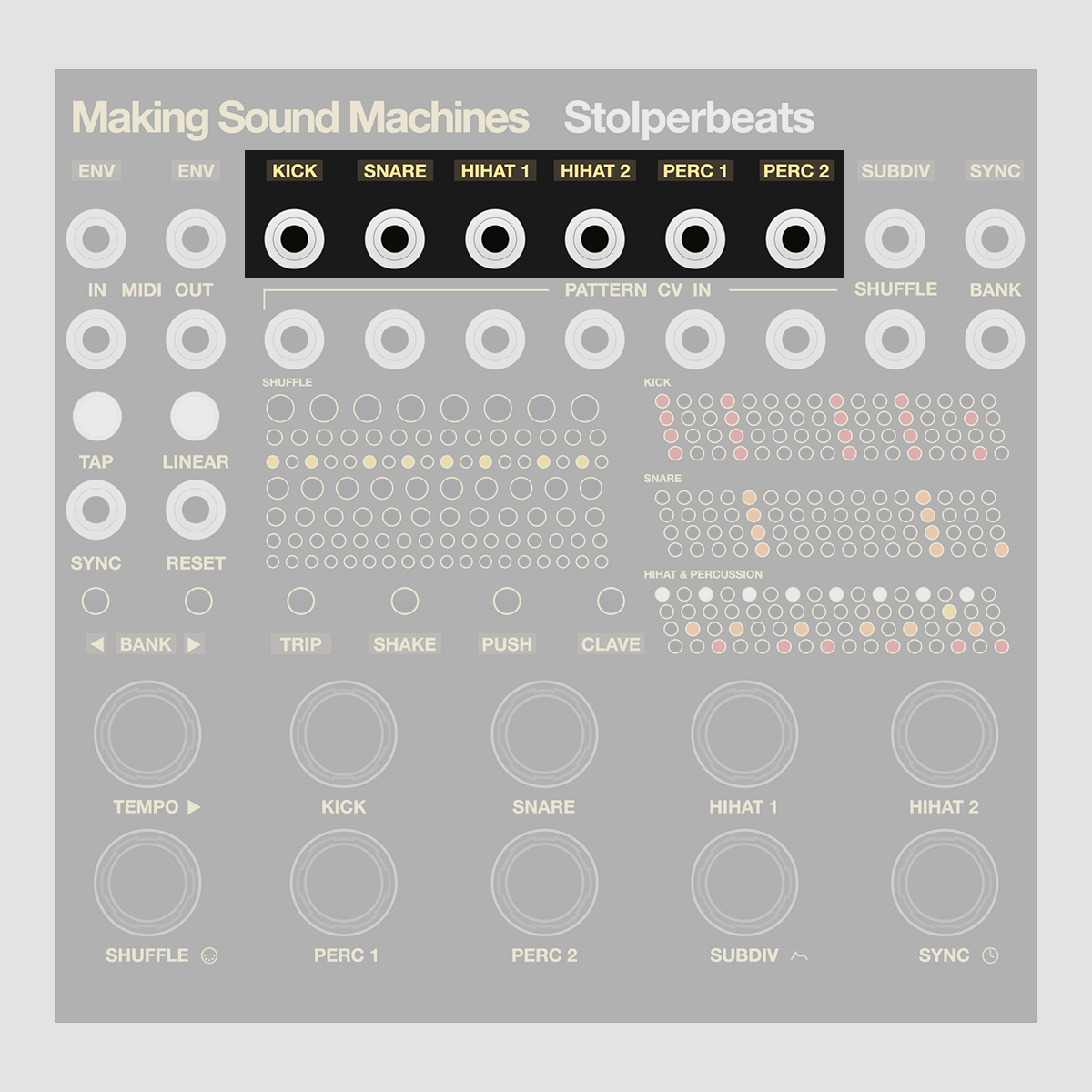

Trigger Out for Kick, Snare, Hihat 1+2, Perc 1+2, at 10V. Patch to the Trigger In of Eurorack modules.

Subdiv Clock Out#

Stolperbeats

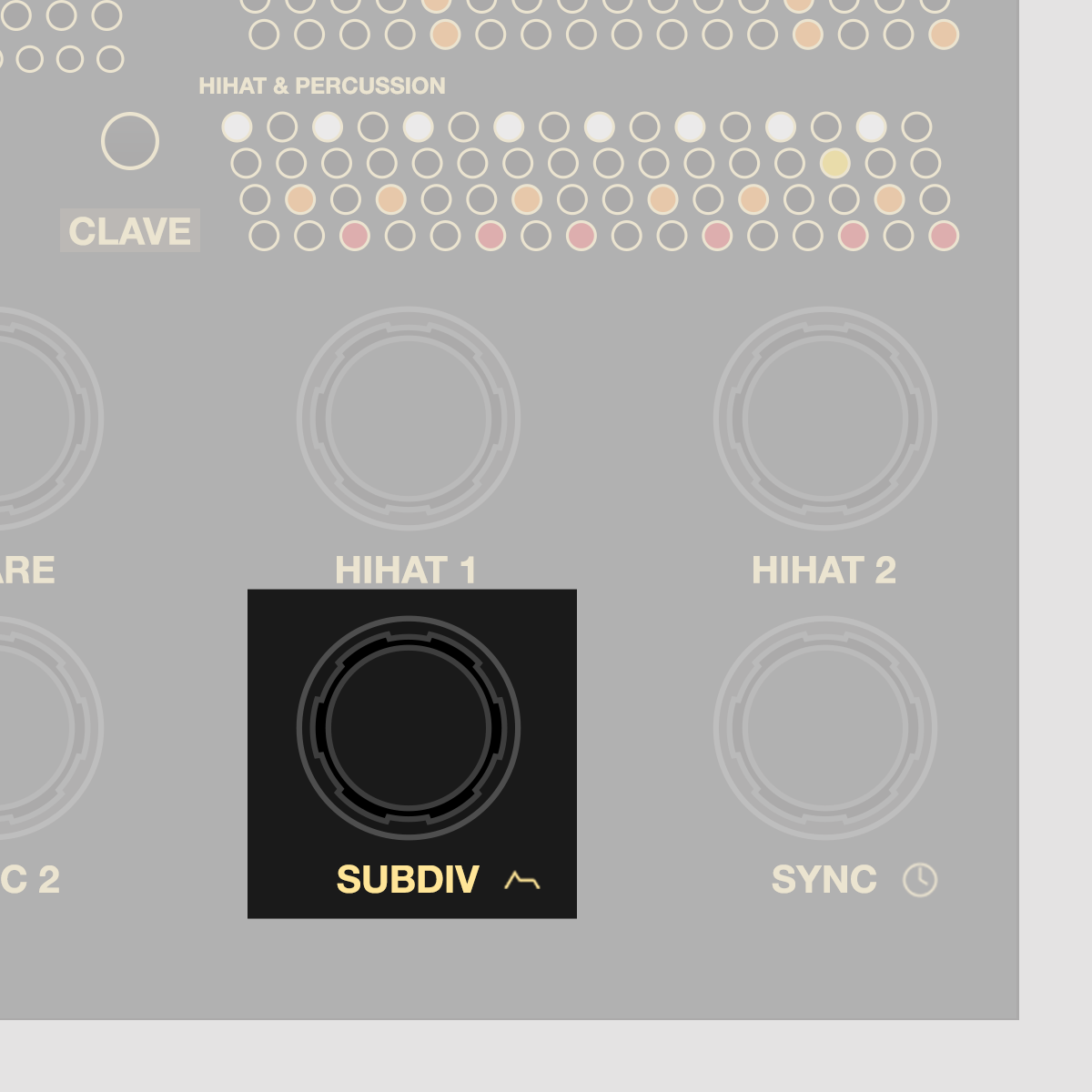

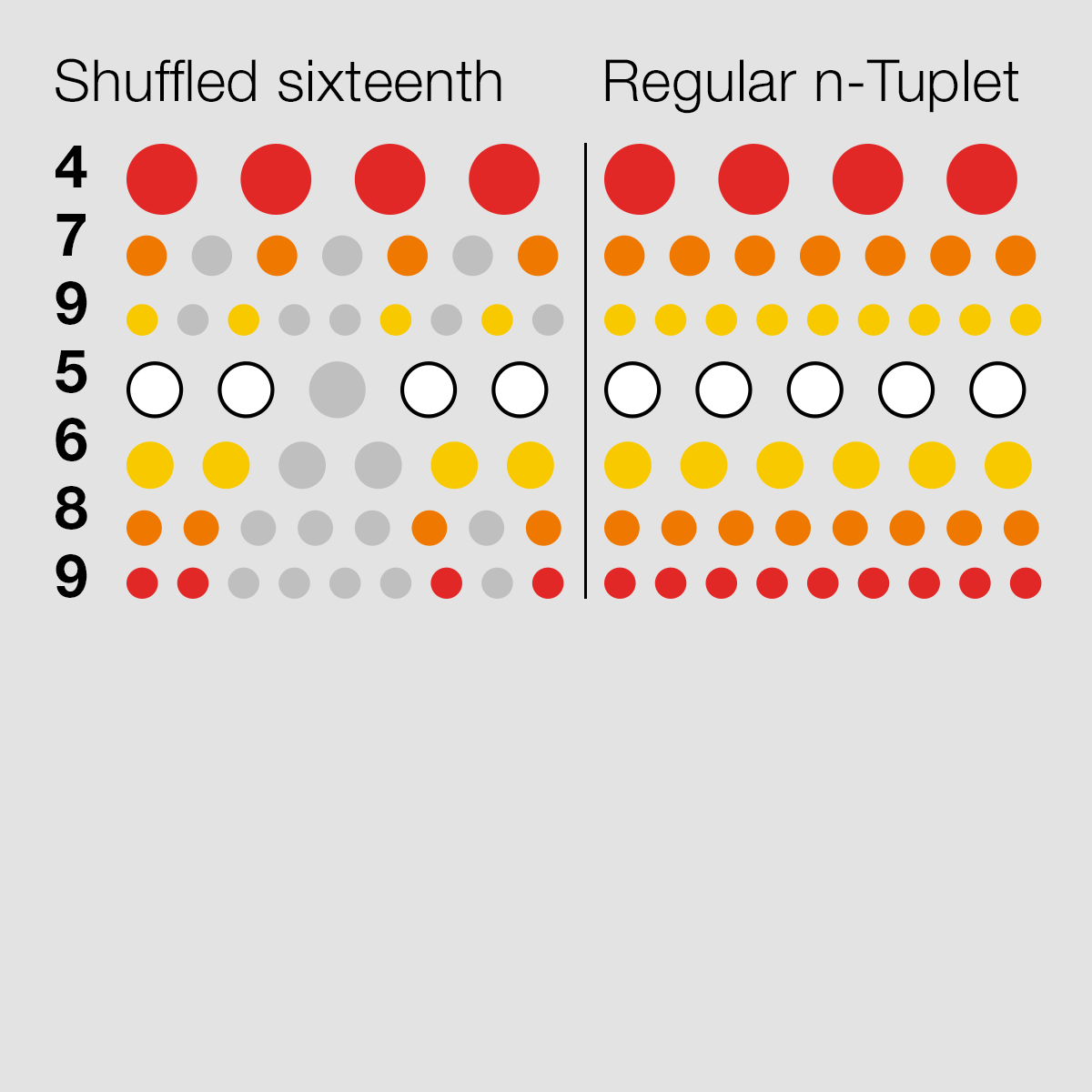

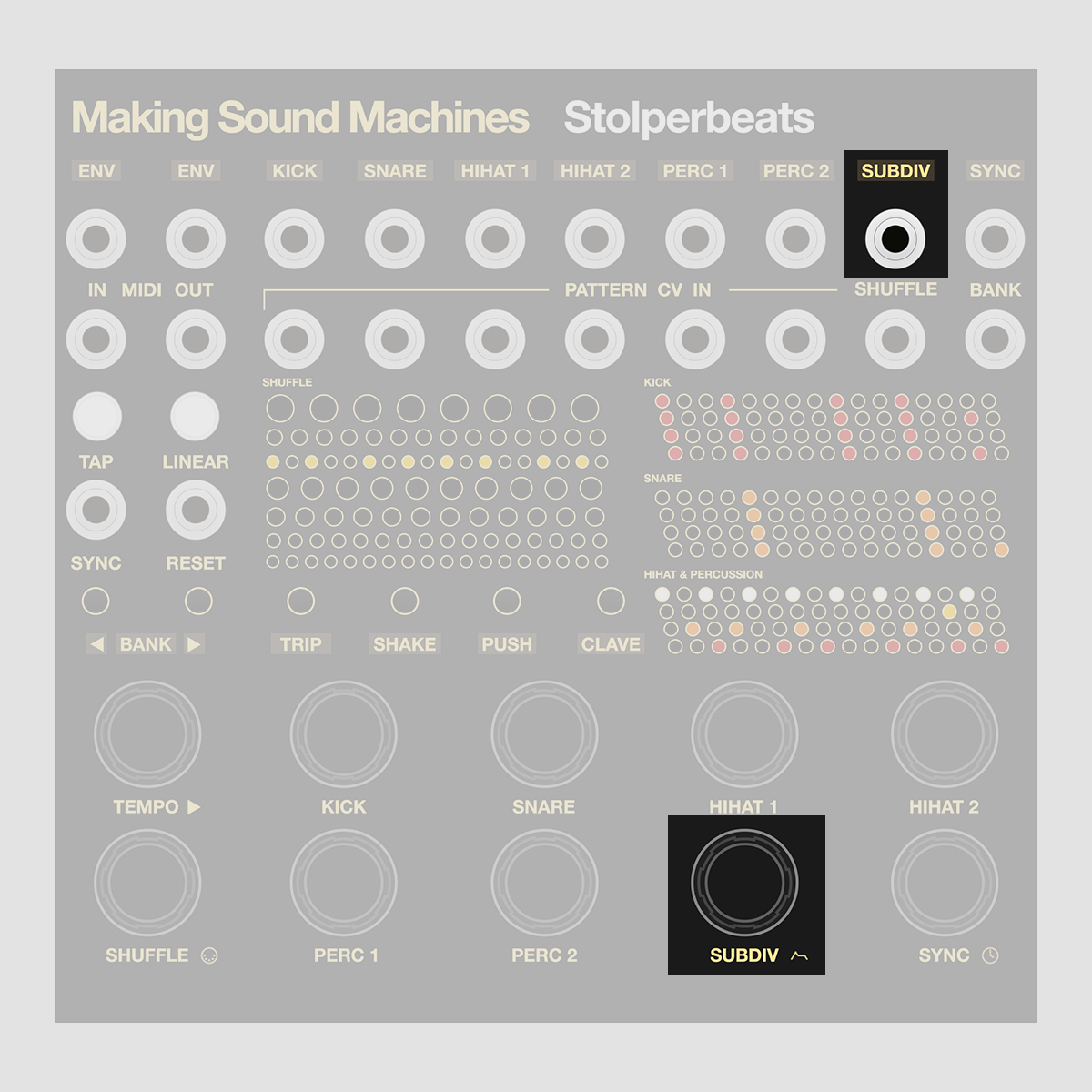

Rotate the Subdiv Encoder to output a shuffled 16th note clock or a regular n-tuplet related to the Shuffle.

Stolperbeats

Use as a clock for any sequencer taking 1 tick per step, 10V triggers.

This allows you to distribute a shuffled clock, or advance by a regular n-tuplet related to the Shuffle.

Sync Clock Out#

Stolperbeats

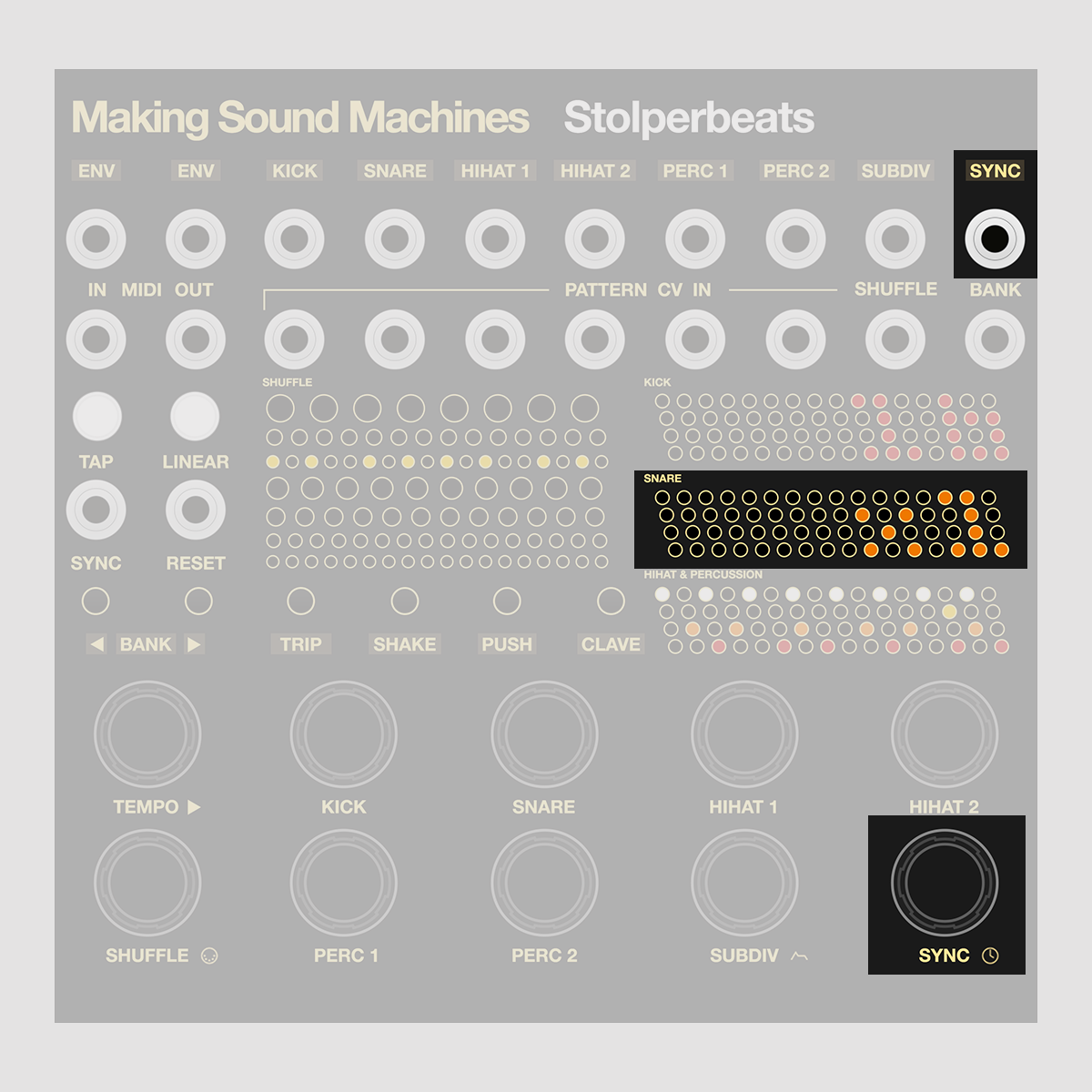

Rotate the Sync Encoder to change the unswung Sync clock divider value in ppqn. Click to highlight Sync In (top, red LEDs) or Out (middle, orange LEDs).

Unshuffled clock for any module that takes a straight 10V pulse clock. Also useful to create a 4/4, n-tuplets independent of Shuffle, and resets every 1, 2 or 4 bars.

Output clock dividers are: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 16 and 24 ppqn. Output clock multipliers: 1, 2 and 4 bars (x1, x2, x4).

Pattern CV In#

Stolperbeats

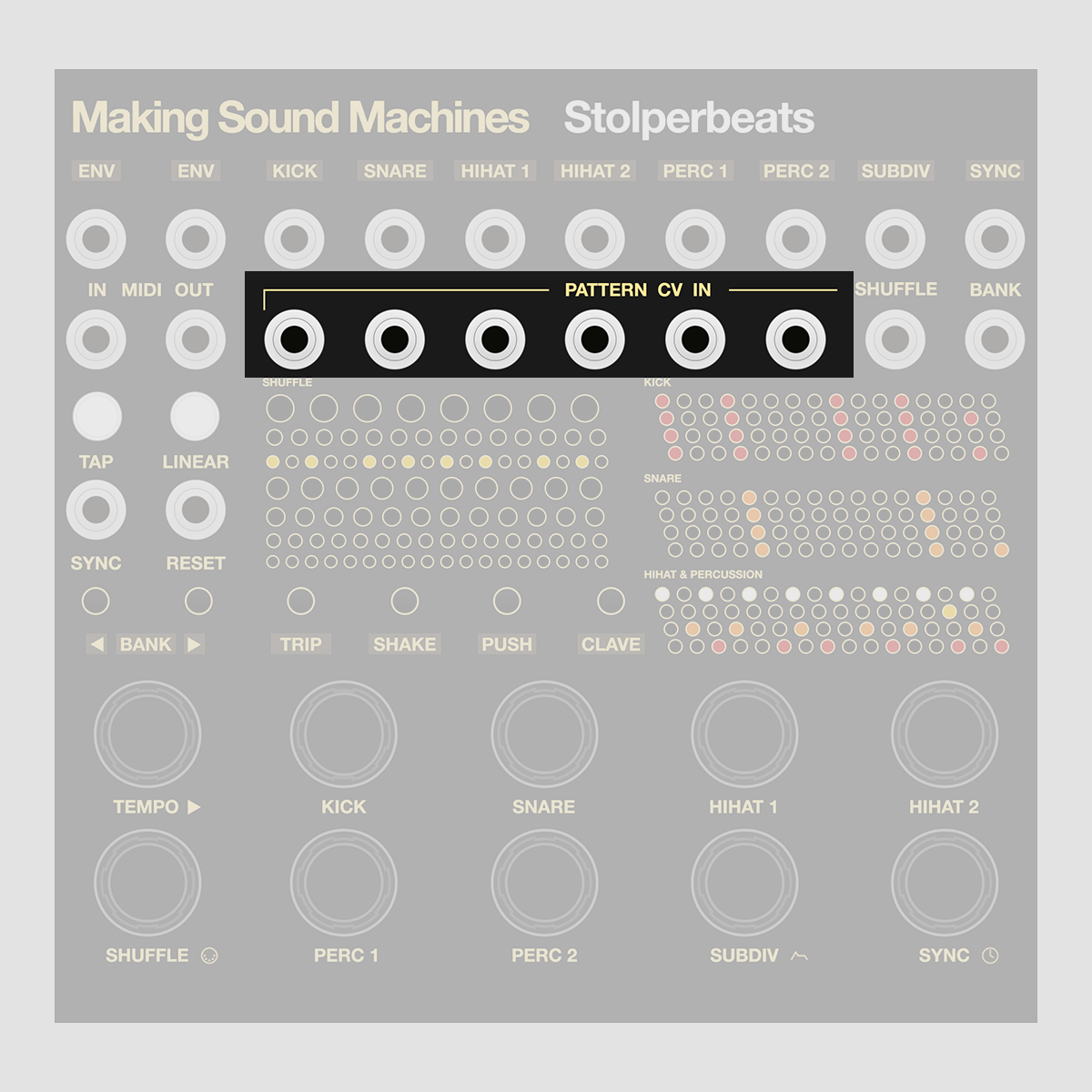

Select a Kick, Snare, Hihat 1+2, Perc 1+2 Pattern from the active Bank using CV.

Accepts a 0 - 5V range, with jumpers that allow for a 0 - 10V range in the back.

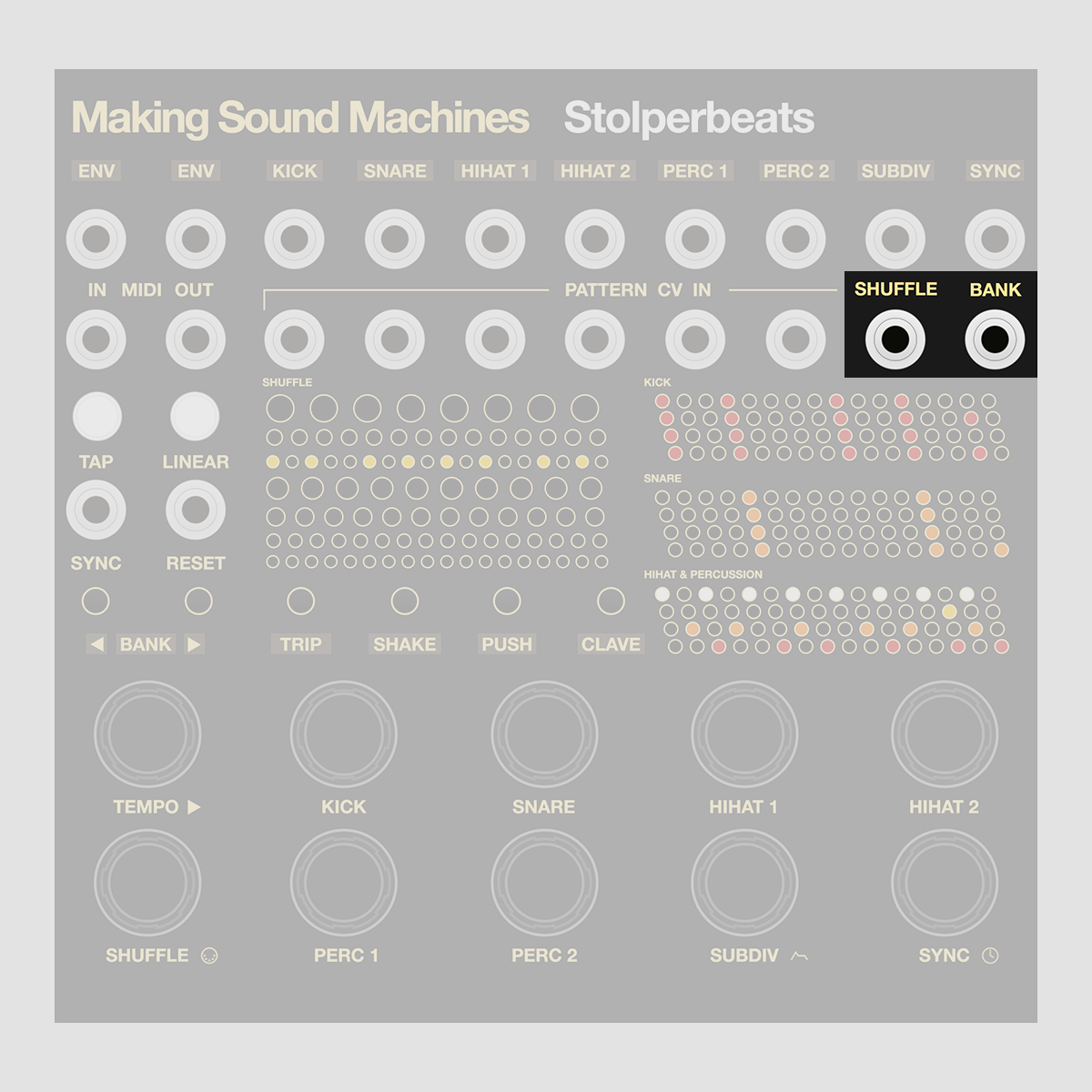

Shuffle + Bank CV In#

Stolperbeats

Select one of 7 Shuffles from the left, and which of the active Banks is used via CV.

Accepts a 0 - 5V range, with jumpers that allow for a 0 - 10V range in the back.

Stolperbeats

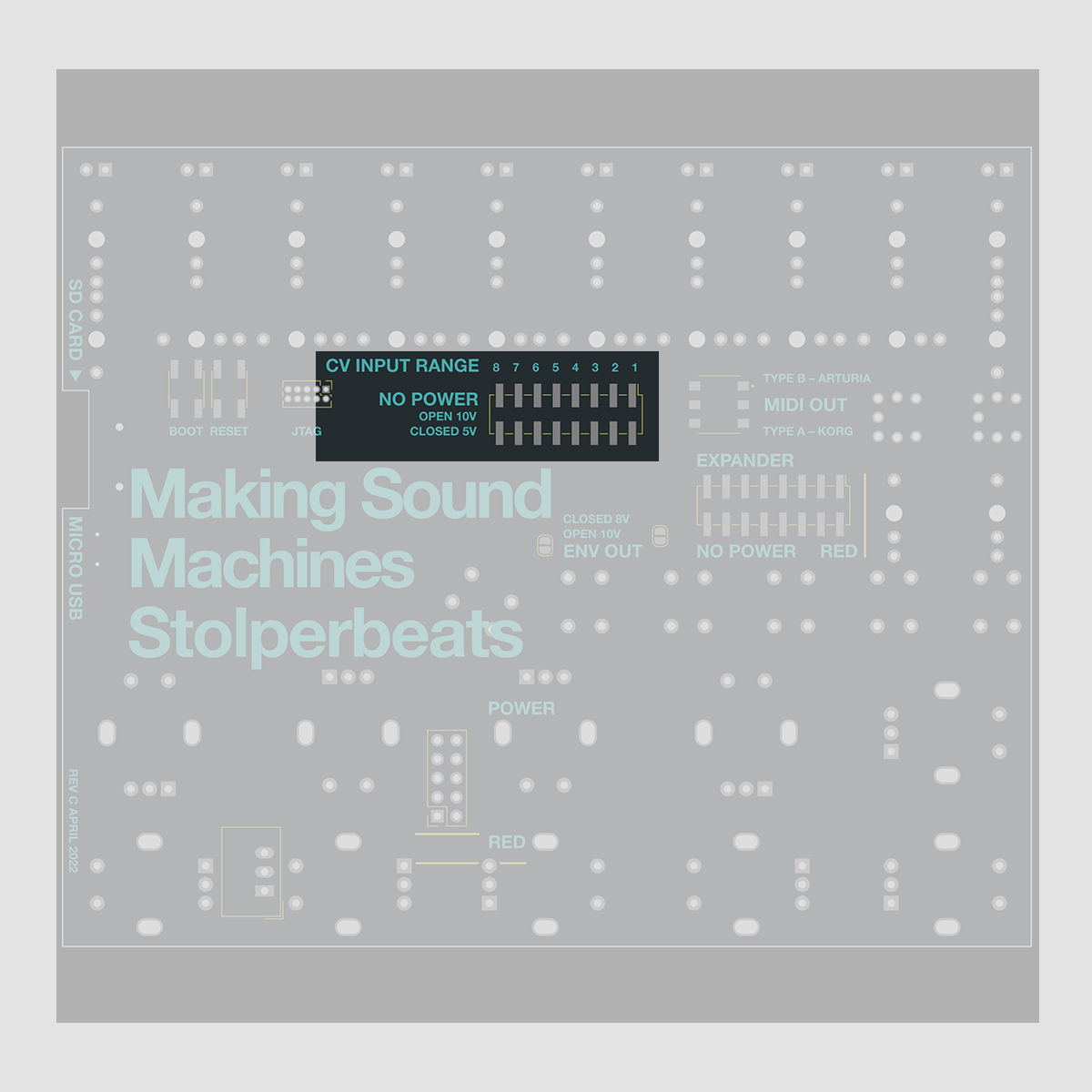

Select the range for each of the Pattern, Shuffle and Bank CV In by setting jumpers on the back of the module.

Closed (with jumper, default) means a 0 - 5V range, open (no jumper) a 0 - 10V range in the back.

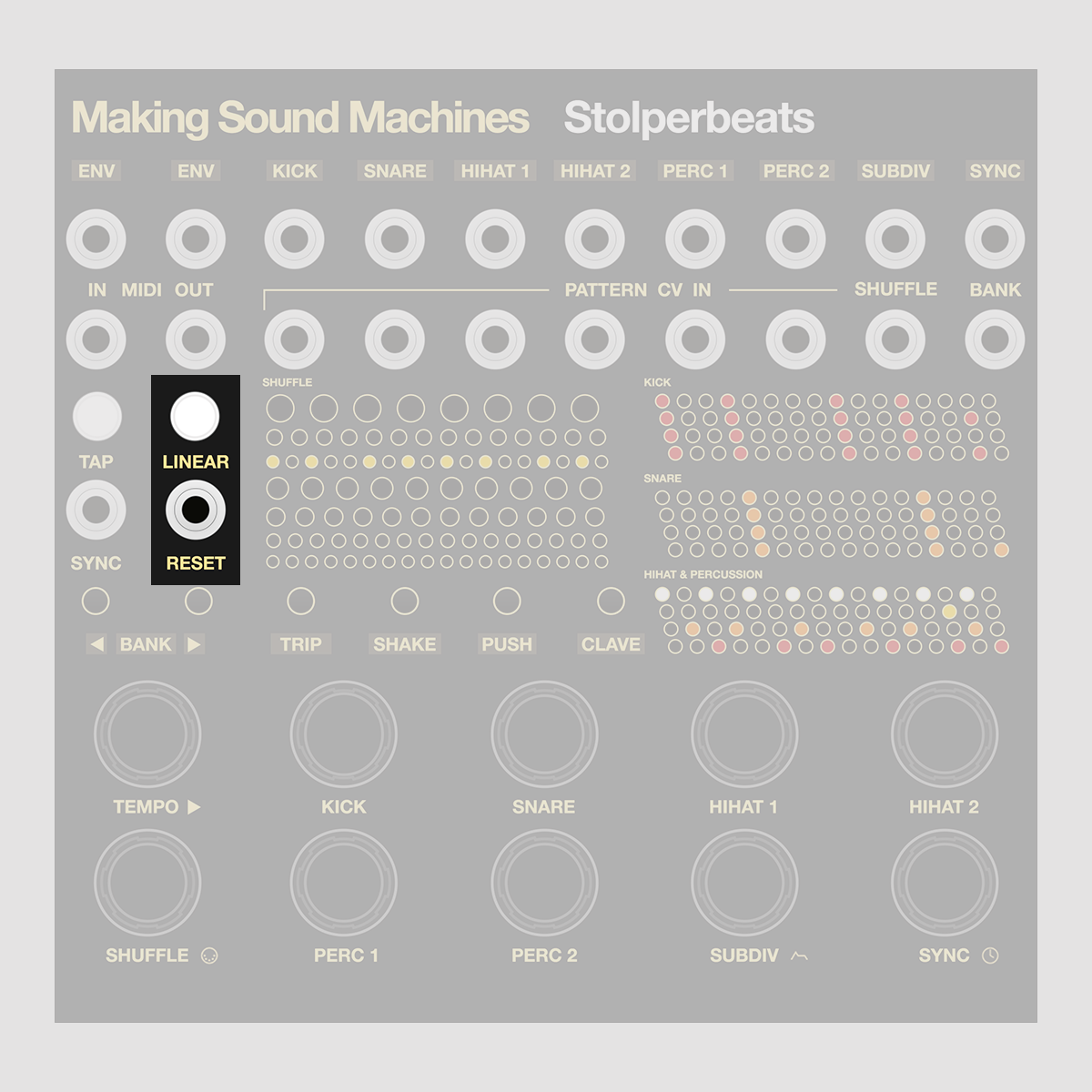

Linear + Reset In#

Stolperbeats

The Linear Button toggles logic to mute steps in your Pattern. Snare wins over Kick, and both over Hihat.

A trigger at Reset sets Stolperbeats back to step 1.

Tap + Sync In#

Stolperbeats

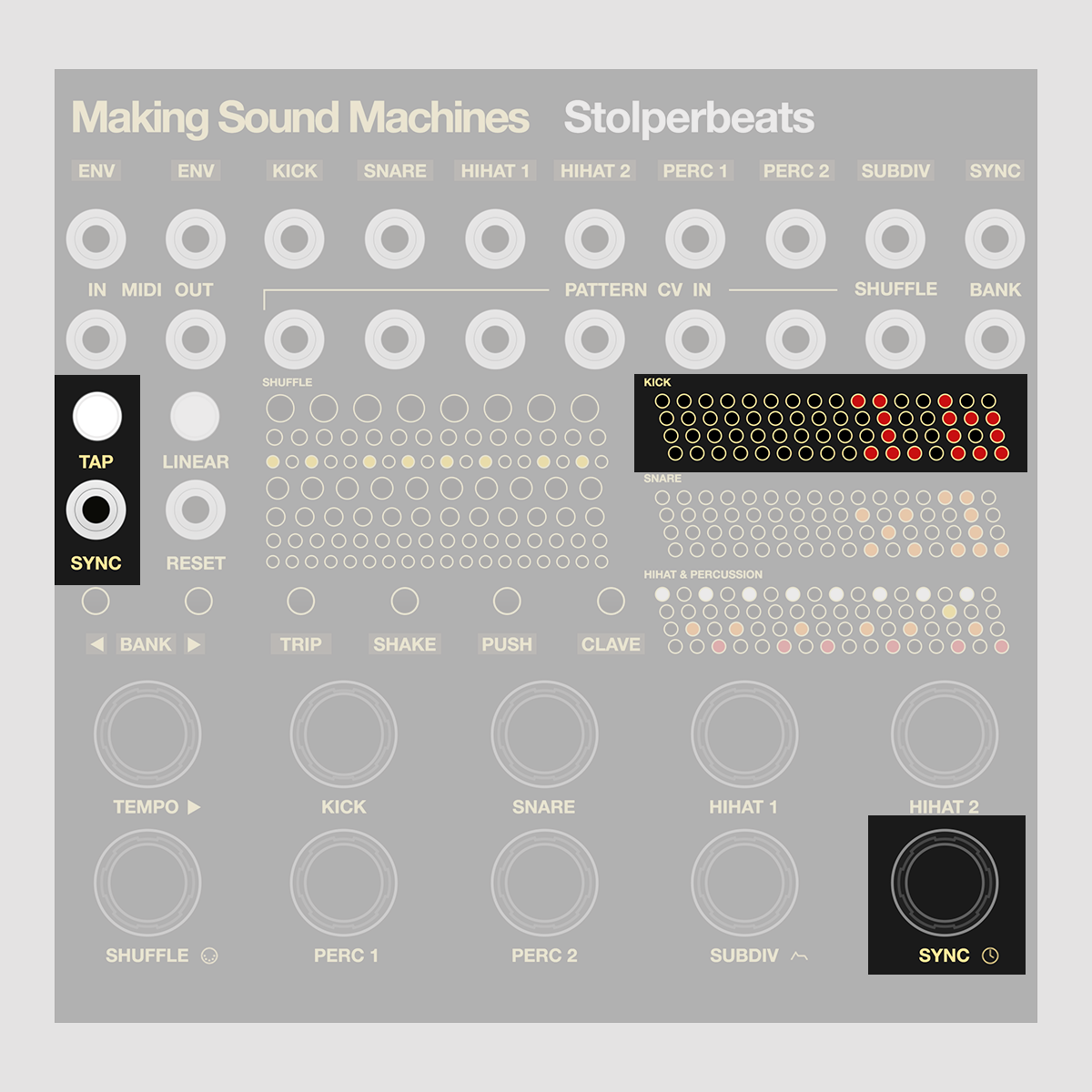

Patch a clock into the Sync In and set a clock input divider using the Sync Encoder.

Click the encoder to highlight Sync In (top, red LEDs) or Out (middle, orange LEDs), rotate to adjust the clock divider setting.

Input clock dividers are: 1, 2, 3, 4, 6, 8, 12, 16 and 24 ppqn.

Or tap 4/4 notes using the Tap button to set any tempo from 30 to 300 bpm.

Envelope and LFO Out#

Stolperbeats

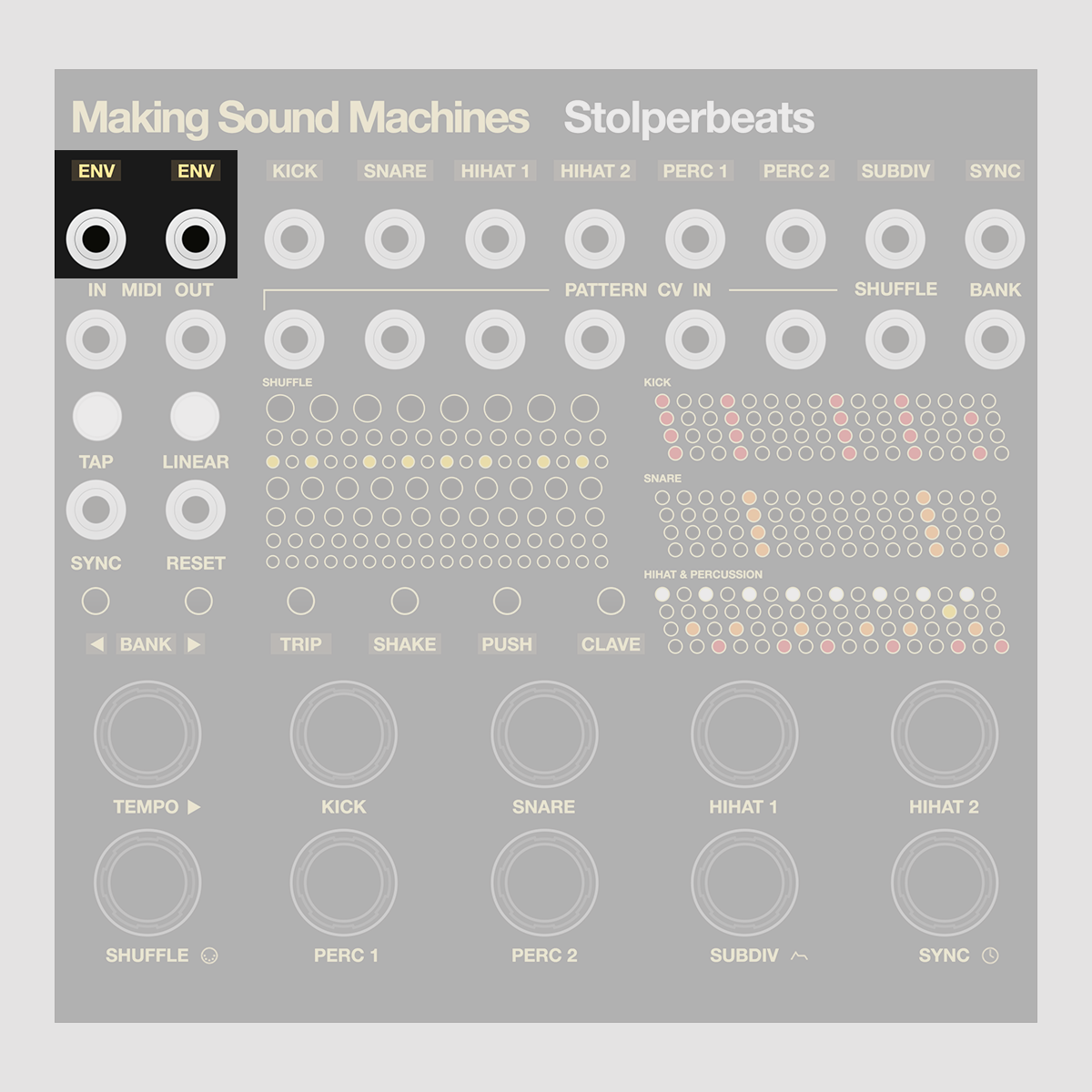

Two Tempo-synced 10V CV Outs ramping down / up, marked Env. Use to shape sounds on other modules.

Stolperbeats

Stolperbeats lets you adjust the Waveform, Clockdivider, lower and upper boundary for both ENV1 and ENV2.

Press + release the Subdiv Encoder for 2 secs to enter and exit the ENV Options.

Stolperbeats

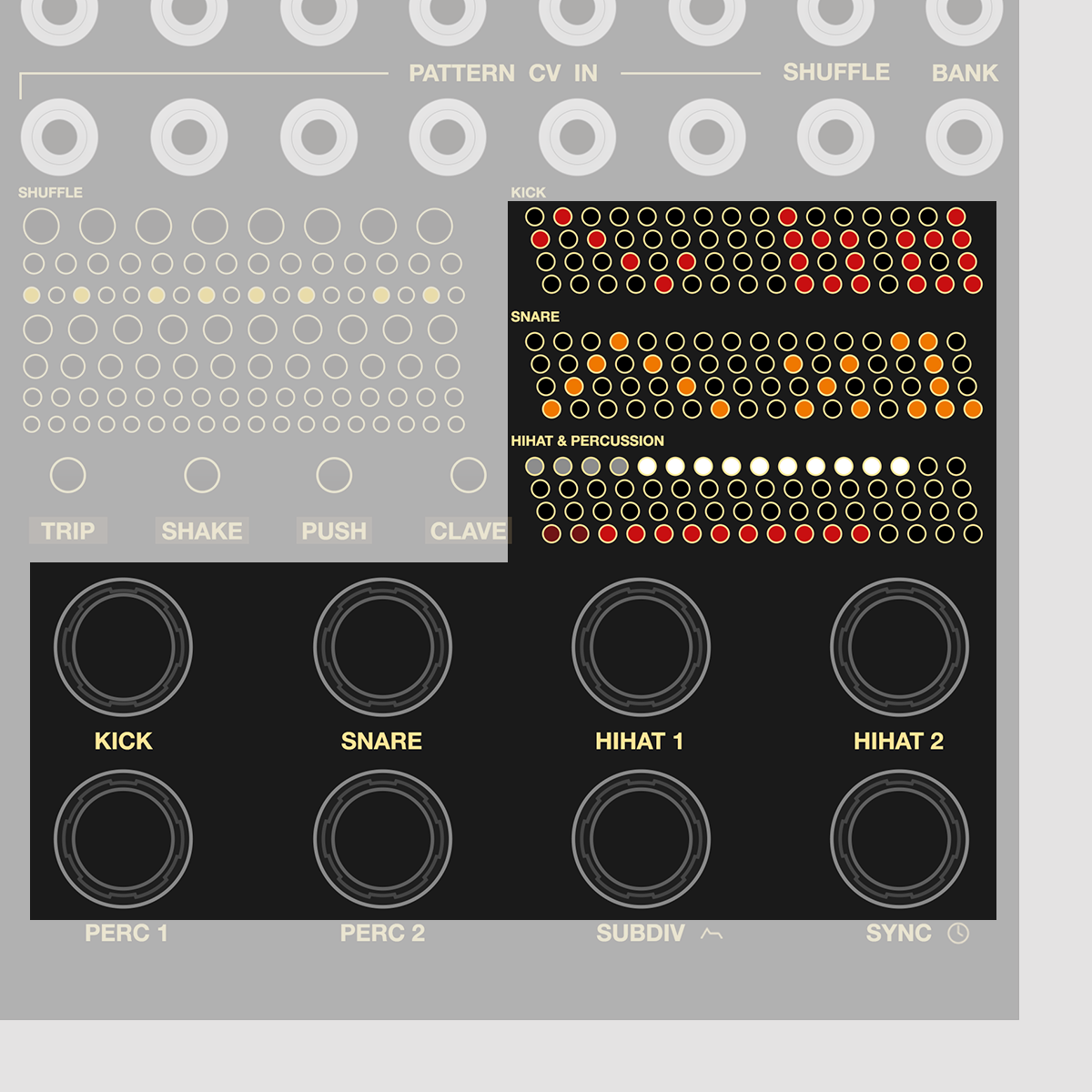

The upper row of encoders starting at Kick adjusts the settings for ENV 1.

The lower row of encoders starting at Perc 1 adjusts the settings for ENV 2.

   Kick     Snare     Hihat 1     Hihat 2
  ENV 1 wave   ENV 1 clockdiv ○  ENV 1 lower boundary ○  ENV 1 upper boundary

   Perc 1     Perc 2     Subdiv     Sync
  ENV 2 wave   ENV 2 clockdiv   ENV 2 lower boundary   ENV 2 upper boundary

You can select from a number of standard waveforms for ENV 1 and 2:

  Ramp down
  Ramp up
  Triangle up
  Triangle down
  Sine
  Cosine
  Pulse (starting high)
  Pulse (starting low)
  x4 - P2: Alternating between upper and lower boundary
:bd - :P2: Stepped velocity values

The envelopes and LFOs are either clocked along with one or multiple bars, a beat, or they reset along with one of the Kick, Snare, HH 1+2, Perc 1+2 triggers and adjust dynamically to coincide with the Shuffle, Timing and Feeling you select.

You can choose from a number of clock dividers:

x4  Resets every 4 bars
x2  Resets every 2 bars
x1  Resets every bar
.5  Resets every half bar
1  Resets every quarter note

bd  Resets when Kick is triggered, playing one cycle;
Sd  Resets when Snare is triggered, playing one cycle;
H1  Resets when Hihat 1 is triggered, playing one cycle;
H2  Resets when Hihat 2 is triggered, playing one cycle;
P1  Resets when Perc 1 is triggered, playing one cycle;
P2  Resets when Perc 2 is triggered, playing one cycle;

:bd  Resets when Kick is triggered, playing one cycle, with velocity;
:Sd  Resets when Snare is triggered, playing one cycle, with velocity;
:H1  Resets when Hihat 1 is triggered, playing one cycle, with velocity;
:H2  Resets when Hihat 2 is triggered, playing one cycle, with velocity;
:P1  Resets when Perc 1 is triggered, playing one cycle, with velocity;
:P2  Resets when Perc 2 is triggered, playing one cycle, with velocity;

Note that while the first two groups share a velocity setting, the last group saves one velocity setting per instrument.

On the first two groups, x4 - P2, the upper boundary can be understood as maximum and the lower boundary as an offset. The range of the envelope lies between lower and upper boundary.

On the last group, :bd - :P2, the upper boundary can be read as accented, and the lower boundary as non-accented velocity. The range of the envelope lies between zero and upper boundary for accents, and zero and lower boundary for non-accents.

Blinking indicates which parameter you last edited. Parameters are saved when you press stop from a playing sequence.

Pattern Banks#

Stolperbeats

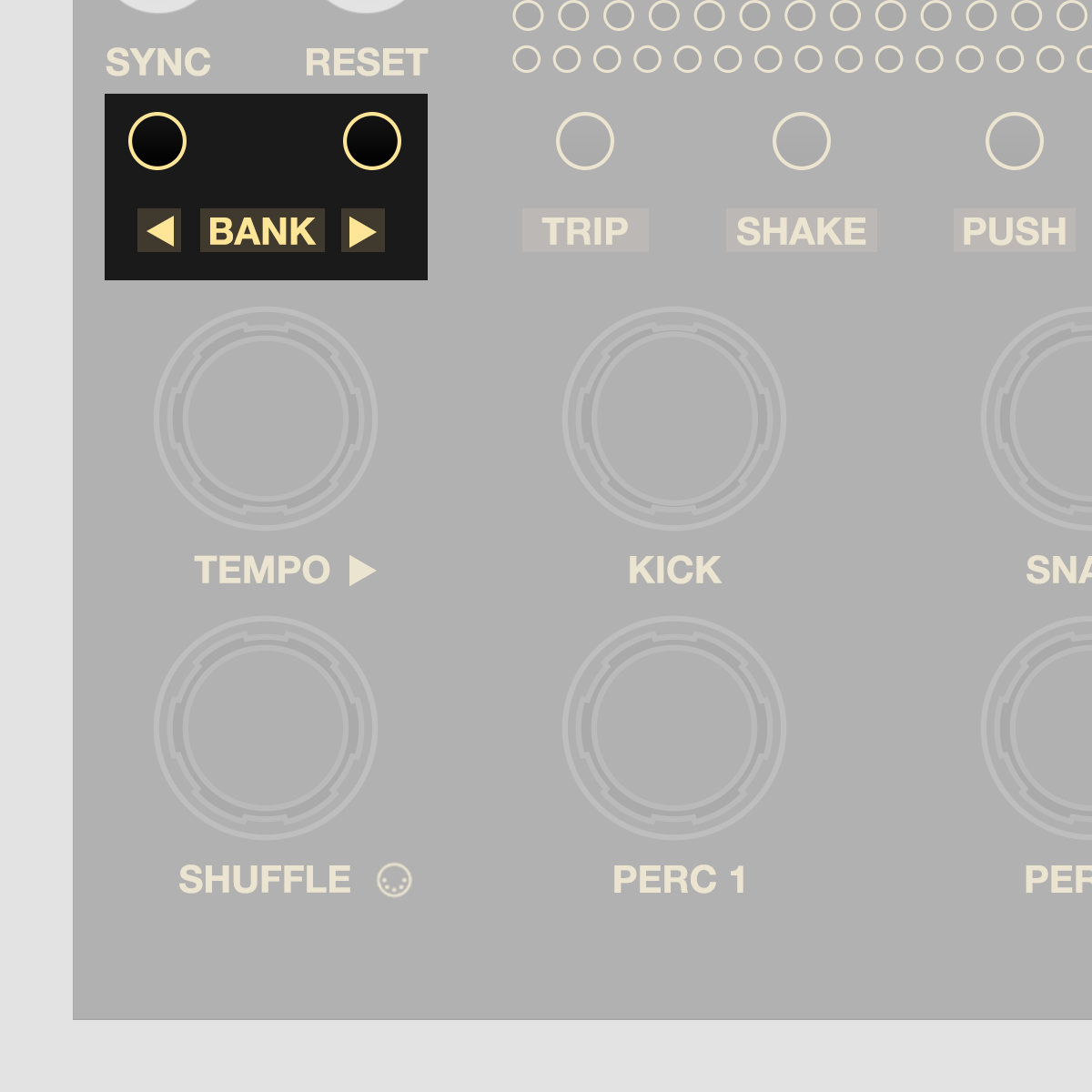

Use the ◄ Bank ► buttons to cycle through active Pattern Banks. There are 64 Banks à 24 Patterns, any of which can be:

active
can be accessed by pressing ◄ Bank

inactive
is skipped when pressing ◄ Bank

Stolperbeats comes with 4 active Pattern Banks, so 4 x 24 default Patterns for each instrument.

Activate / deactivate Pattern Banks#

You might want to program on one set of Banks, but perform with another set; or want to use the Banks creatively by having variations of the same Patterns in the same slots, so you can toggle them similar to the A, B and Fill Patterns on classic drum machines.

You can also choose to load an empty Bank if you want to start programming beats from an entirely blank slate.

Stolperbeats

Enter Bank Edit

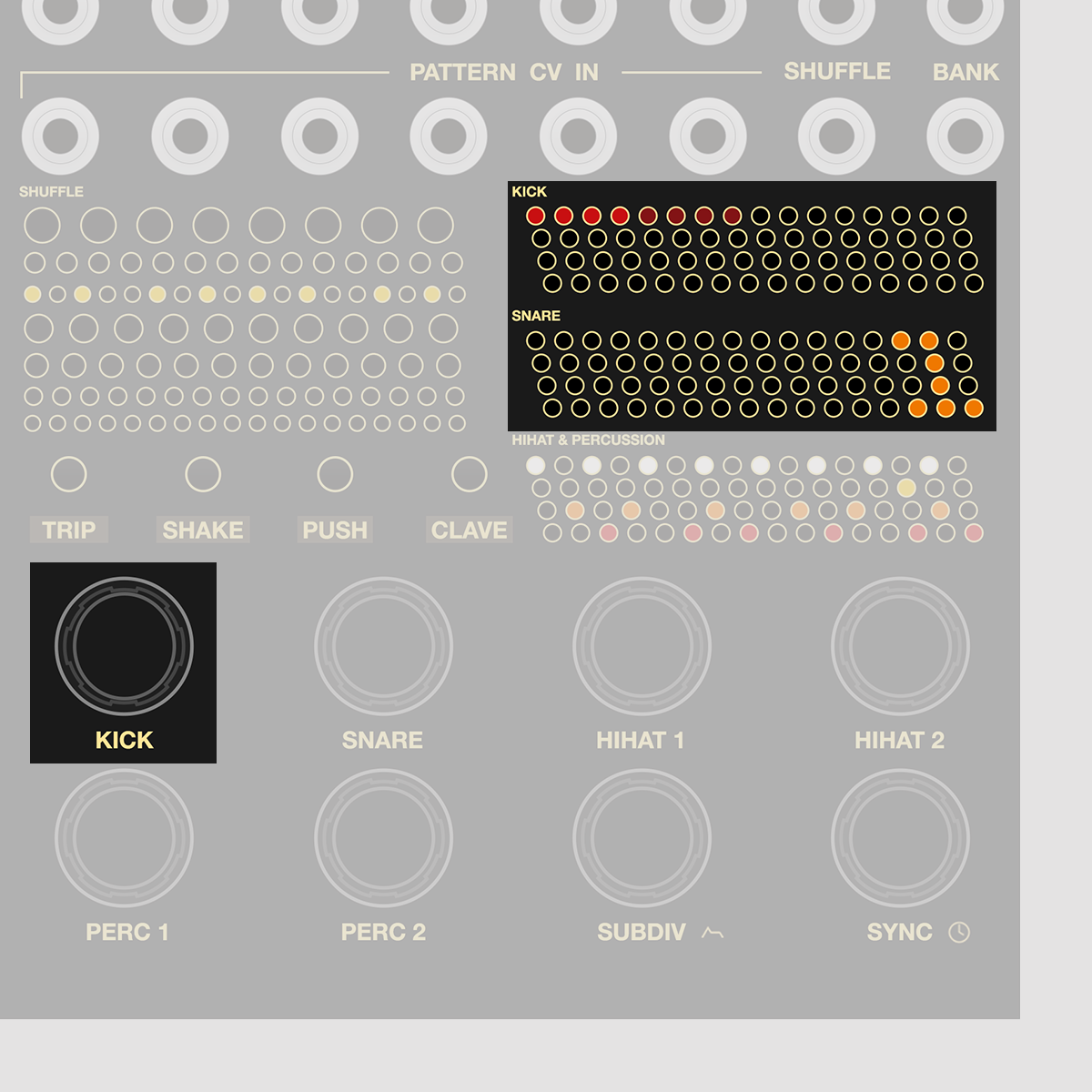

Press + release either the left ◄ Bank button or the right Bank ► button for 2 secs

  Active Bank
  Inactive Bank  holds Pattern
  Inactive Bank  empty Pattern
  Selected Bank  blinks

The Bank selected to be set active / inactive is blinking. Rotate Kick Encoder to select, click to set active / inactive.

Exit Bank Edit
Press + release either the left ◄ Bank button or the right Bank ► button for 2 secs

MIDI Functionality

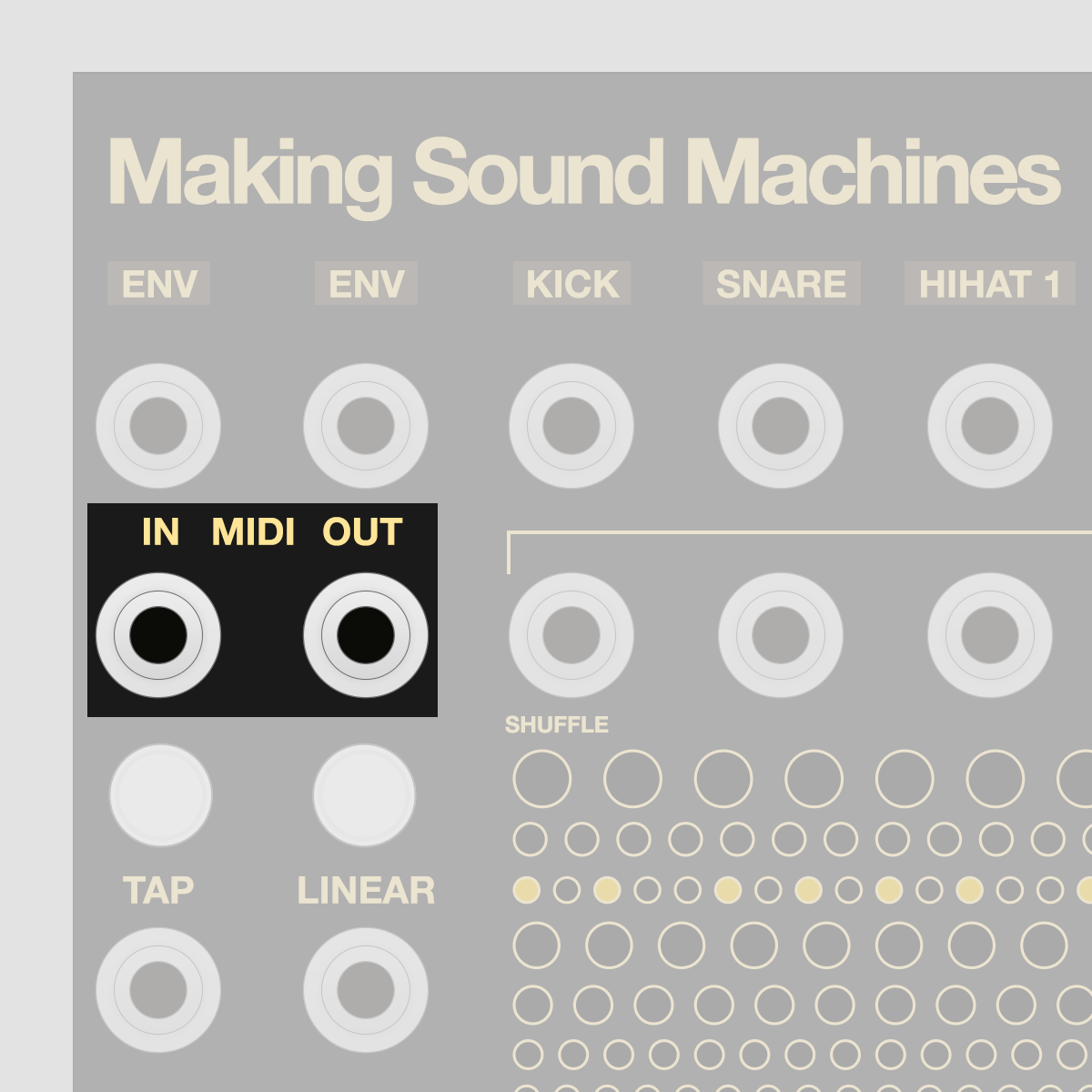

MIDI In + Out#

Stolperbeats

Stolperbeats sends a MIDI Note per trigger on 7 tracks: Kick, Snare, Hihat 1+2, Perc 1+2 and Subdiv. You can adjust Channel, Pitch, Velocity, and Duration per track.

The module also sends its tempo as a 24 ppqn MIDI Clock, as well as Play and Stop messages.

It can receive MIDI Notes on fixed Channels to cycle through the 24 Patterns in the active Bank, toggle Subdiv and select Shuffle, Timing and Feeling.

Stolperbeats

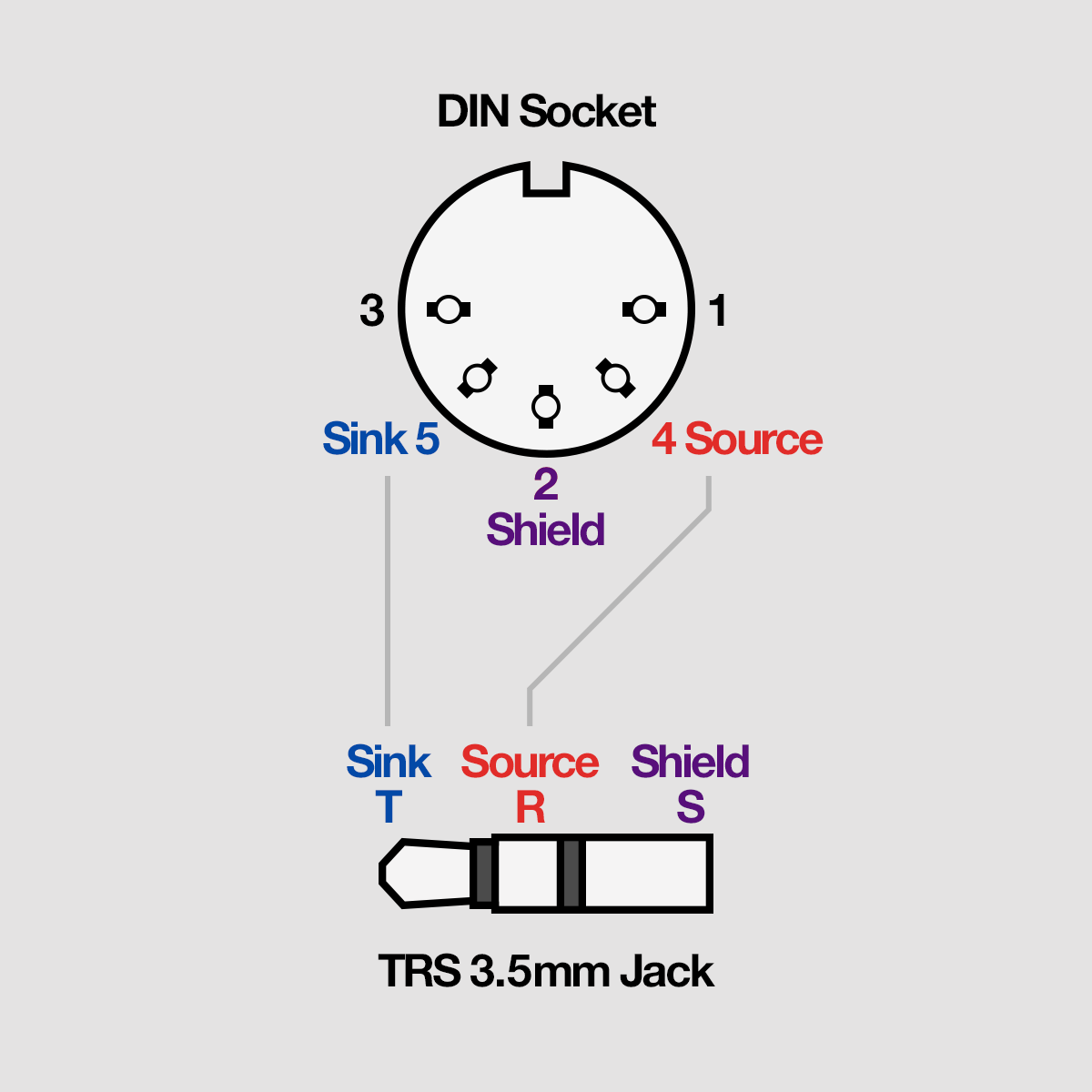

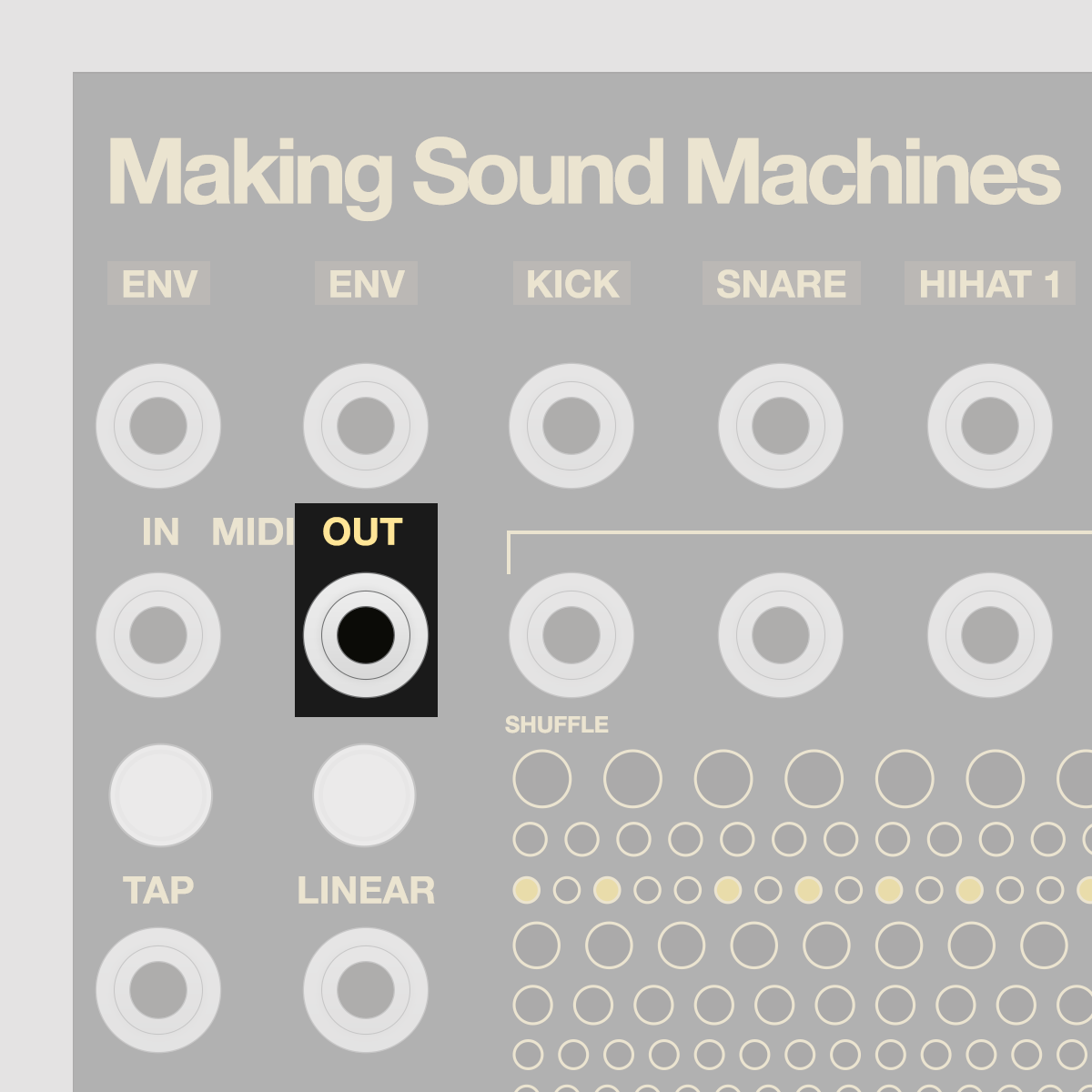

MIDI Out is TRS Type A by default, as is the included DIN Adapter. For Type B, flip the switch on the back of the module.

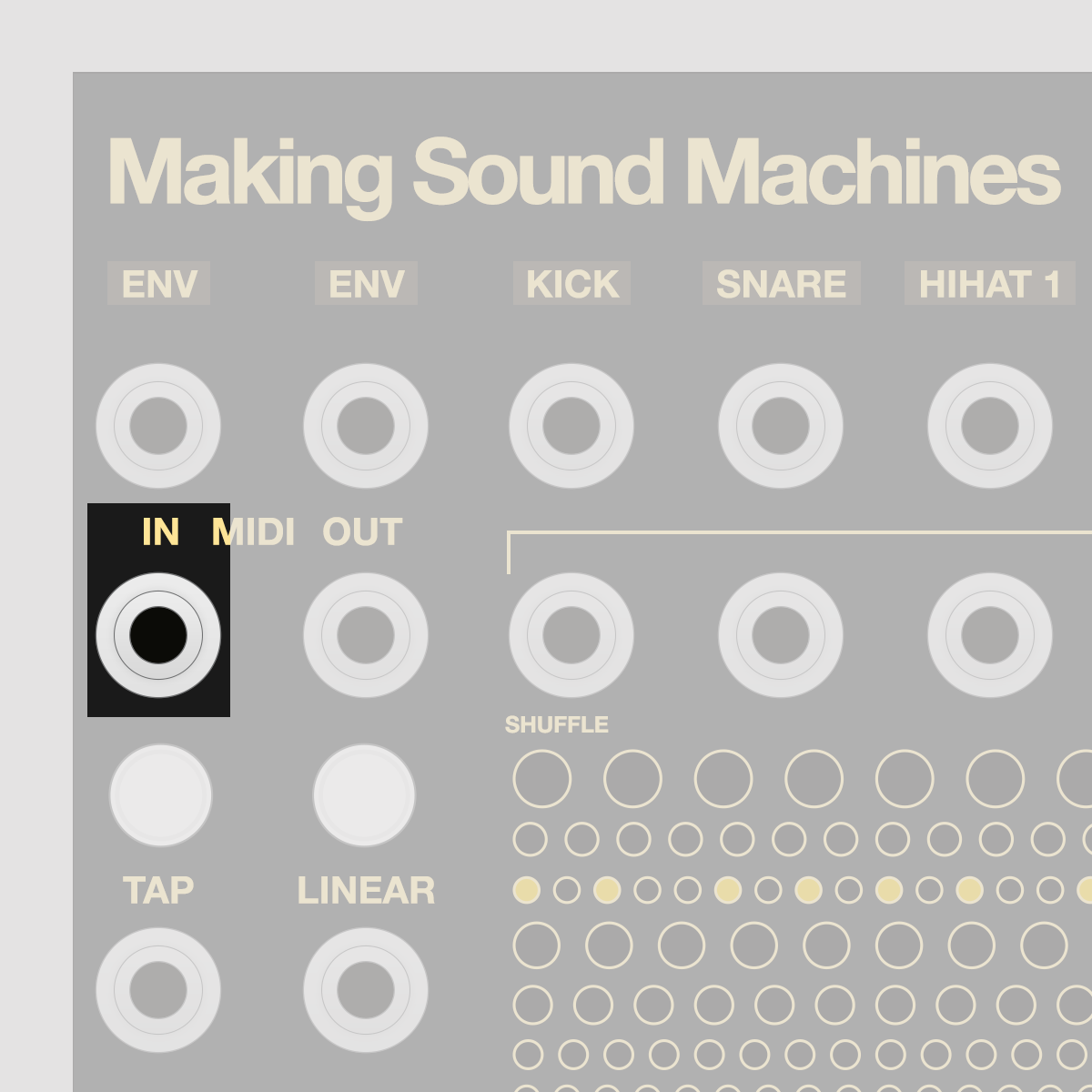

MIDI In accepts both TRS Type A and B.

Stolperbeats

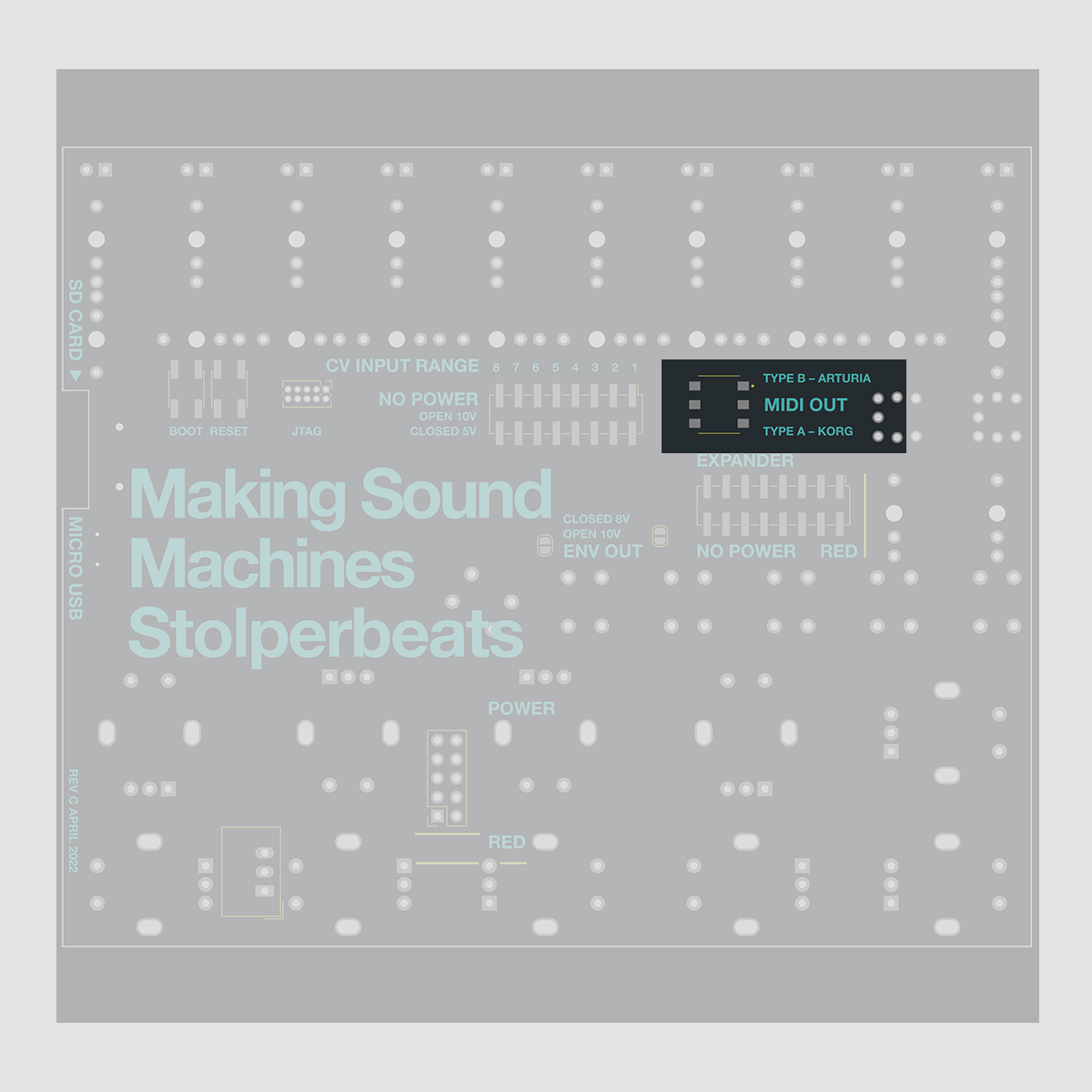

To select either Type A or B for MIDI Out, flip the switch on the back of the module.

Find a list of TRS MIDI devices and their respective type at minimidi.world

Edit MIDI Out mapping#

Stolperbeats

The module has two modes for editing its MIDI Output mapping. They differ in how incoming MIDI is handled:

MIDI Edit
Press + release Shuffle Encoder for 2 secs
MIDI Parameters on Matrix will blink slowly
MIDI In: default, see MIDI Select Pattern

MIDI Rec
Press + release Shuffle Encoder for 3 secs
MIDI Parameters on Matrix will blink quickly
MIDI In sets active Track's Note + Channel

Stolperbeats

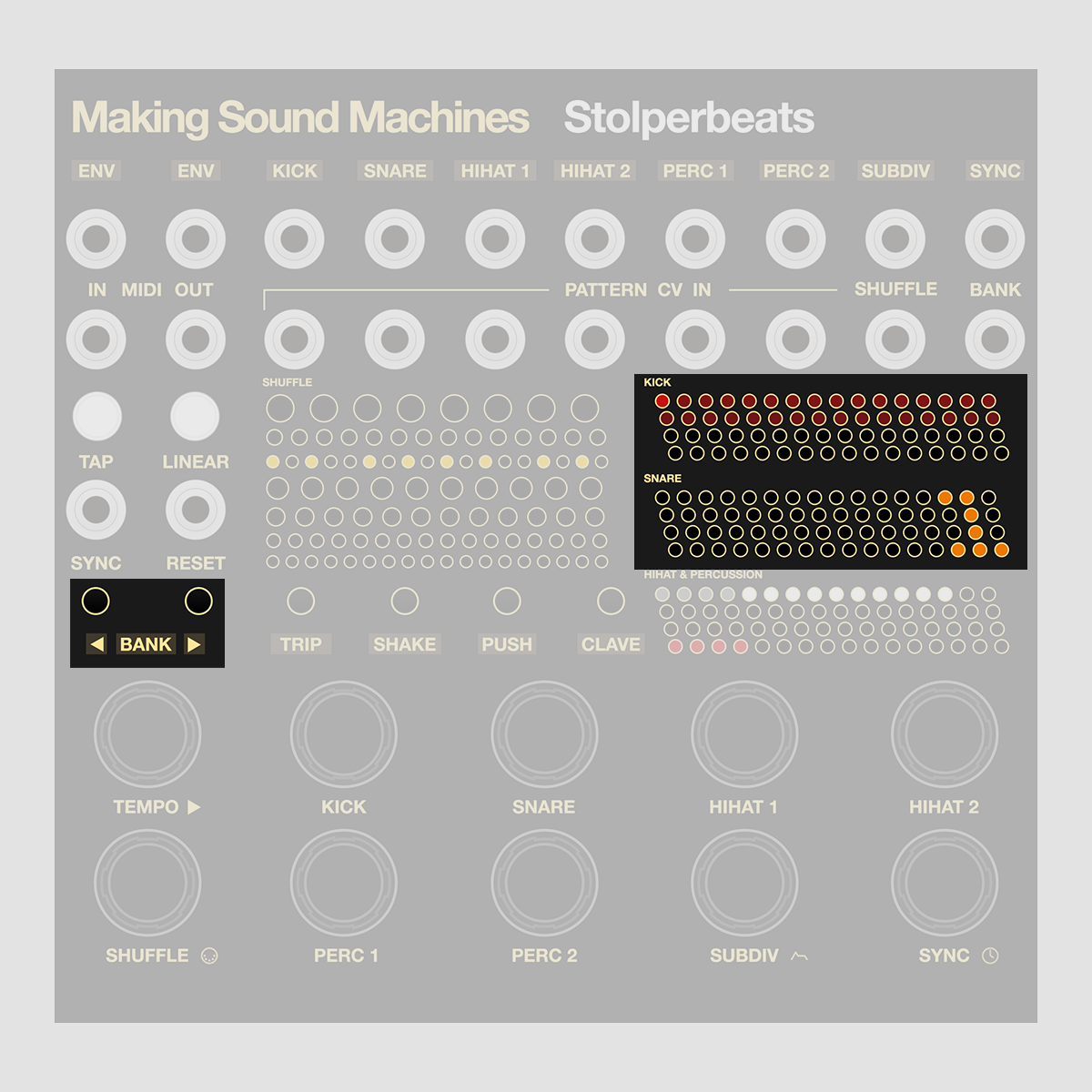

Use ◄ Bank ► to select one of 32 MIDI Banks.

Once you are finished editing the MIDI out mapping, long press the left ◄ Bank Button, and hold until the display has stopped blinking to save changes to that Bank.

Stolperbeats

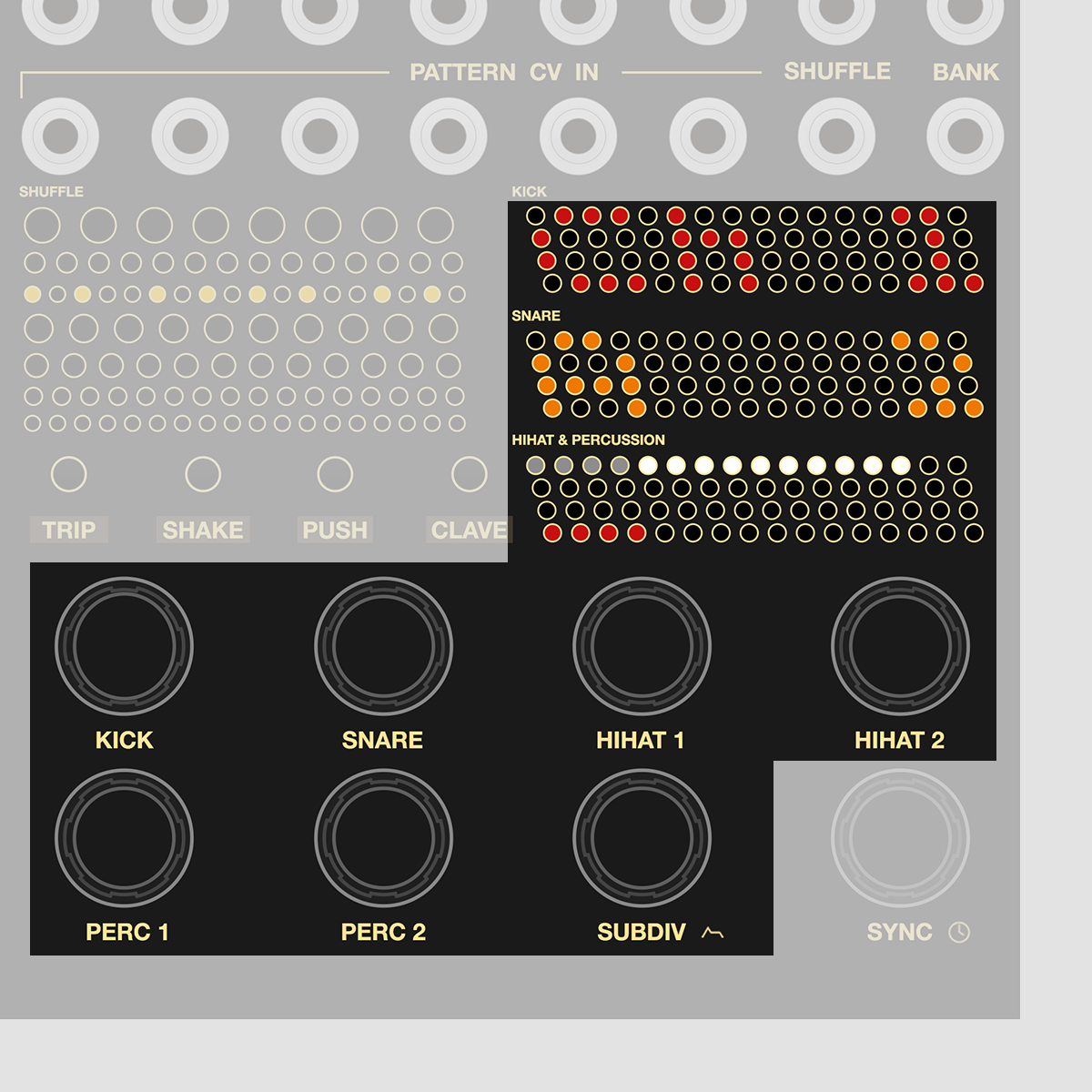

Nudge the Kick, Snare, Hihat 1+2, Perc 1+2 or Subdiv Encoder to display the Track's MIDI Out Parameters.

The selected parameter is blinking. Click to select, rotate to change the Parameter.

  Channel  MIDI Channels 1 – 16
  Note  Note name and octave
○  Velocity  1 LED = 8 steps.
Dimly lit: lower boundary
Fully lit: upper boundary
  Duration  Note length: clicky to legato

Note that a MIDI velocity map is generated automatically. Each instrument has a lower boundary and upper boundary - lower boundary (dimly lit) represents non-accented velocity, upper boundary (fully lit) represents accented velocity.

Exit  Press + release Shuffle Encoder for 2 secs

MIDI Clock Out#

Stolperbeats

Stolperbeats sends its tempo as 24 ppqn MIDI Clock. Press Play to send MIDI Play or Stop messages. Use this to sync with Sequencers or to record into a DAW.

MIDI Clock In#

Stolperbeats

Stolperbeats can receive 24 ppqn MIDI Clock, as well as Play, Stop and Reset MIDI Transport messages. Use this to sync with Sequencers or to record into a DAW.

MIDI Select Pattern#

The module can receive MIDI Notes on fixed Channels to cycle through the 24 Patterns in the active Bank, toggle Subdiv and select Shuffle, Timing and Feeling:

Ch 1  Kick  Notes 0 – 127 cycle 24 Patterns
Ch 2  Snare  Notes 0 – 127 cycle 24 Patterns
Ch 3  Hihat 1  Notes 0 – 127 cycle 24 Patterns
Ch 4  Hihat 2  Notes 0 – 127 cycle 24 Patterns
Ch 5  Perc 1  Notes 0 – 127 cycle 24 Patterns
Ch 6  Perc 2  Notes 0 – 127 cycle 24 Patterns

Ch 7  Subdiv  Alternates shuffled 16th and n-tuplet
Ch 8  Shuffle  Notes 0 – 127 cycle 7 Shuffles
Ch 9  Feeling  Notes 0 – 127 cycle 4 Feelings
  + Timing  Every 4 Notes cycle 4 Timings

Ch 11  Track Mutes  Notes 0 – 123 cycle 4 Feelings
  + Resets  Note 124 – Play
Note 125 – Pause
Note 126 – Stop
Note 127 – Reset

Expander#

Stolperbeats

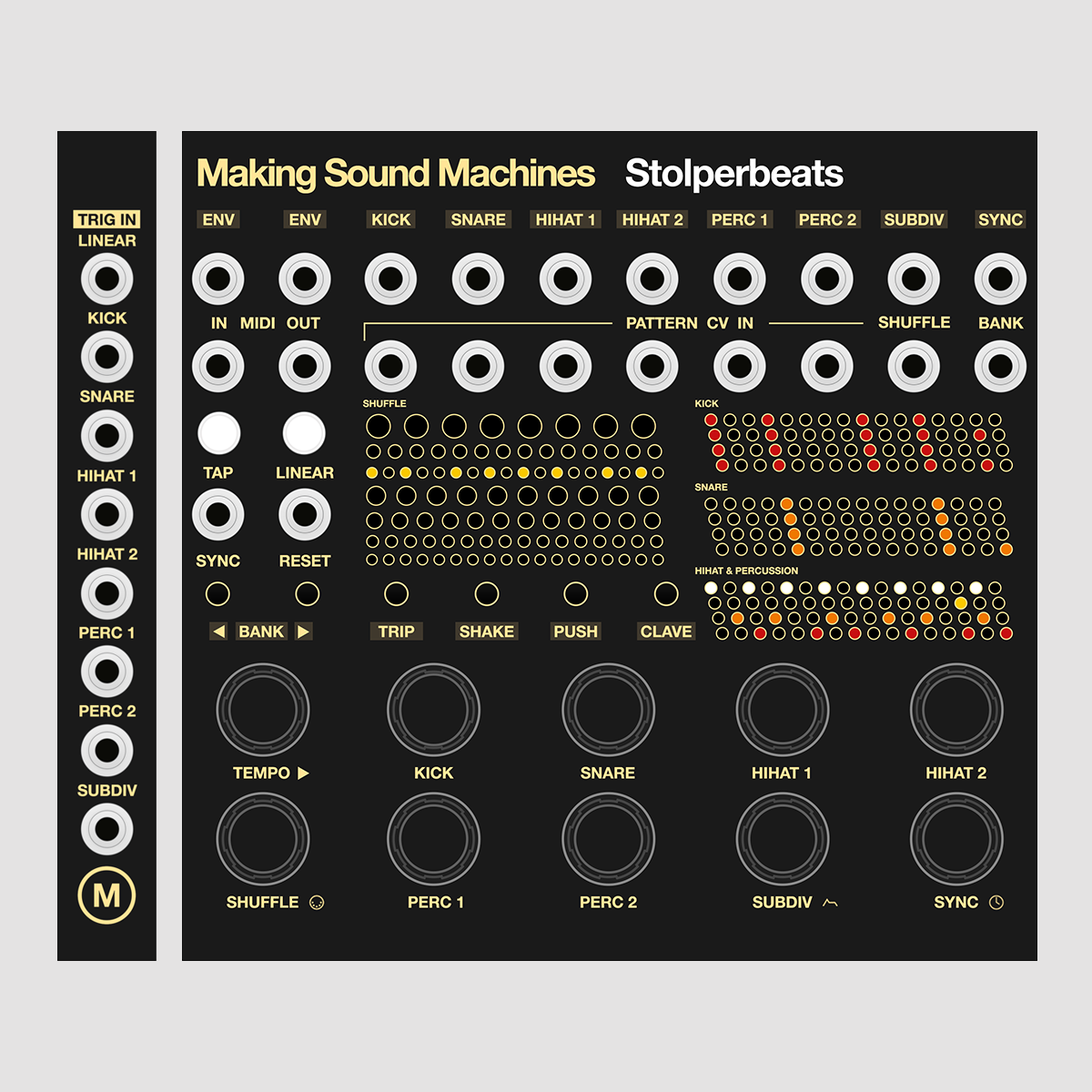

The Expander allows you to toggle Linear, and Mute for Kick, Snare, Hihat 1+2, Perc 1+2 and Subdiv.

Imagine one of those drummers who "air-drum" a pattern about half the time, and play the drums only for the other half.

Patch euclidean triggers into one or more inputs of the Expander to achieve this effect, or random triggers for rhythmic variation that is uncoupled from the bars / measures of your beat.

Stolperbeats

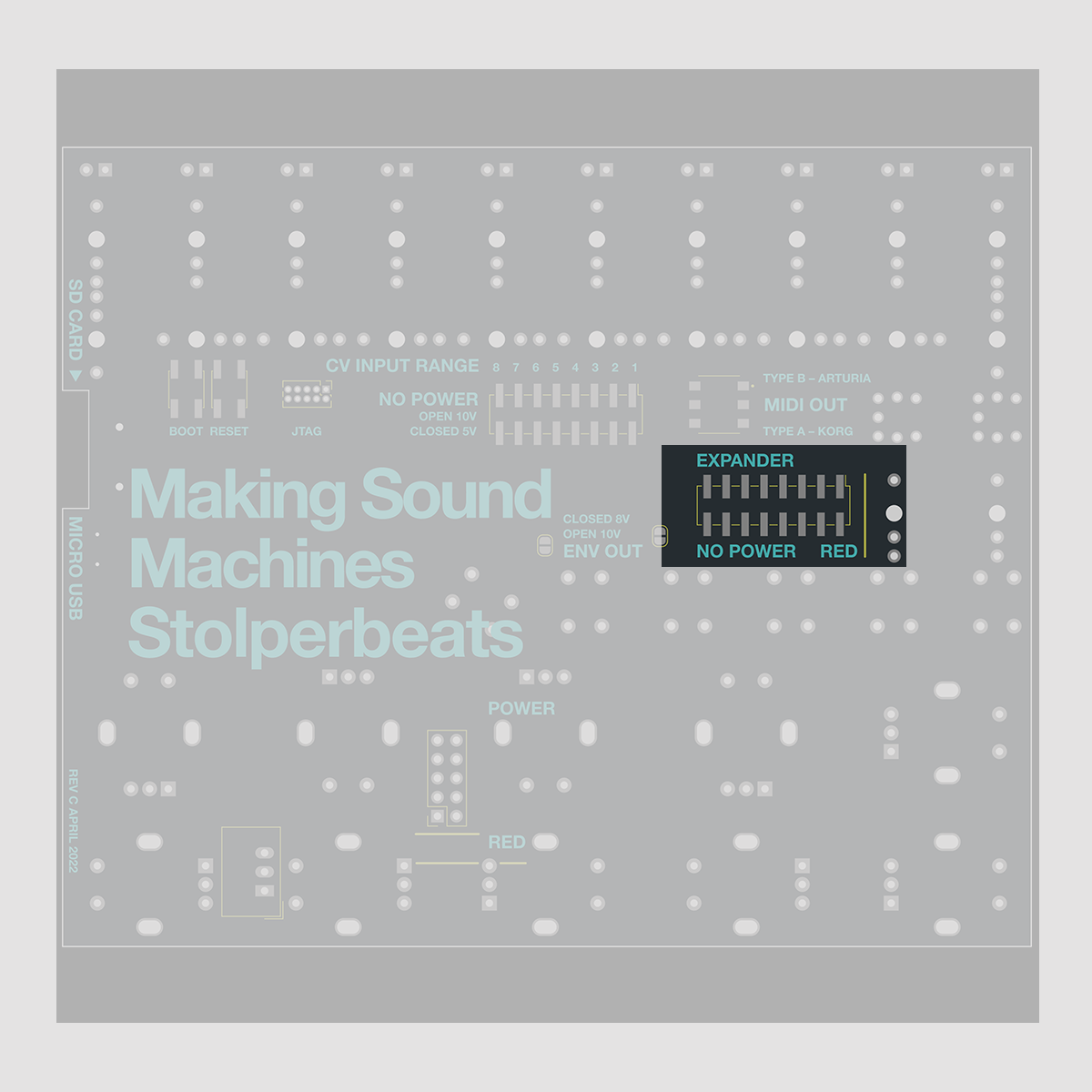

Connect the Expander to the 2x8 pin header marked Expander on the back of Stolperbeats, with the supplied ribbon cable.

The red stripe on the ribbon cable must match the Red Stripe marking on both boards. The Expander is passive – do not connect it to Power.

SD Card#

Stolperbeats

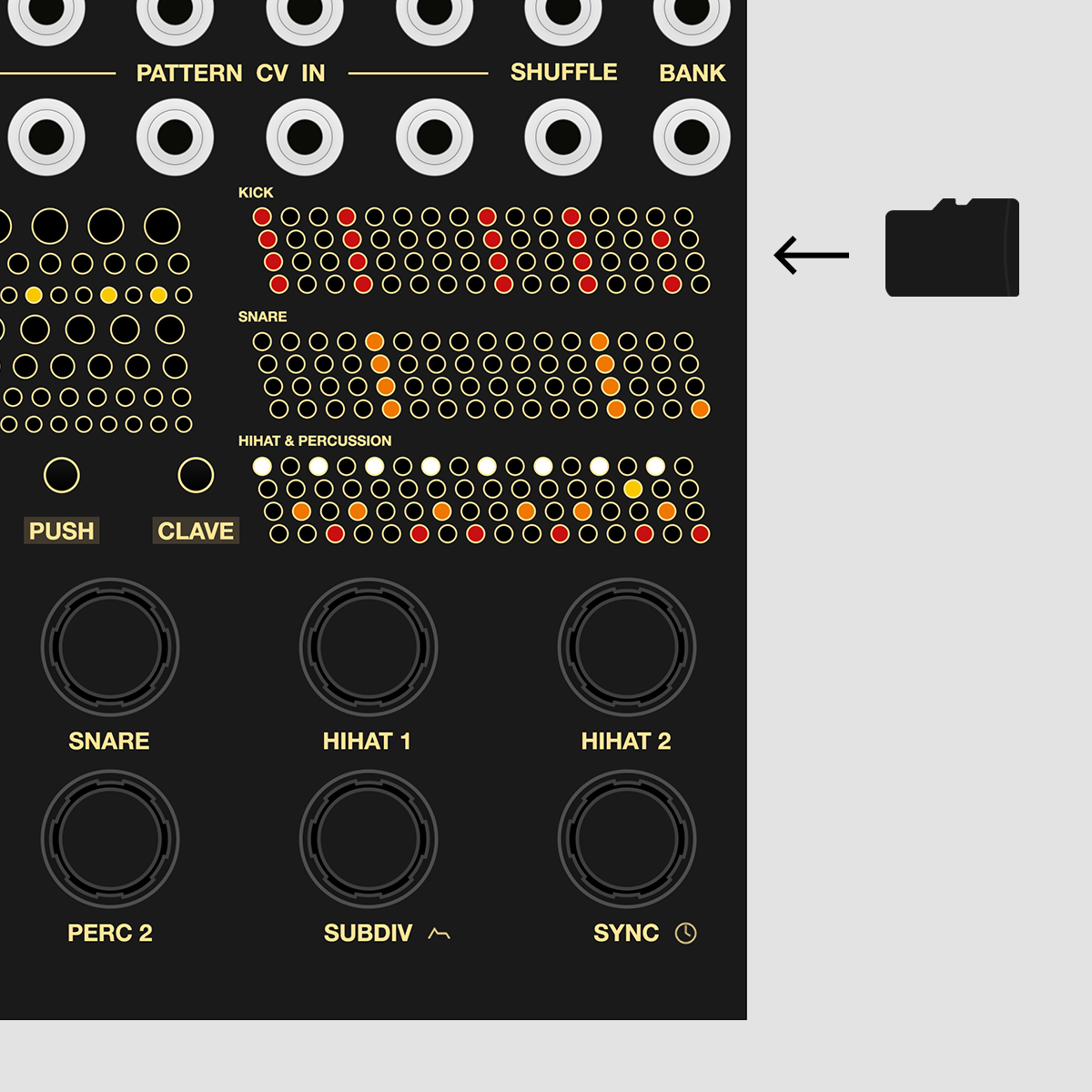

The SD card stores Stolperbeats' Pattern Data, Settings and MIDI Banks. It is a Class 10 FAT 32 formatted card. Data is generally written once you stop the sequencer.

You should never have to remove it unless you want to backup data. There are also a few configuration settings you can set via the SD card.

Without an SD Card, Stolperbeats will work, but boot in default and forget settings over a power cycle.

Firmware Updates#

Stolperbeats

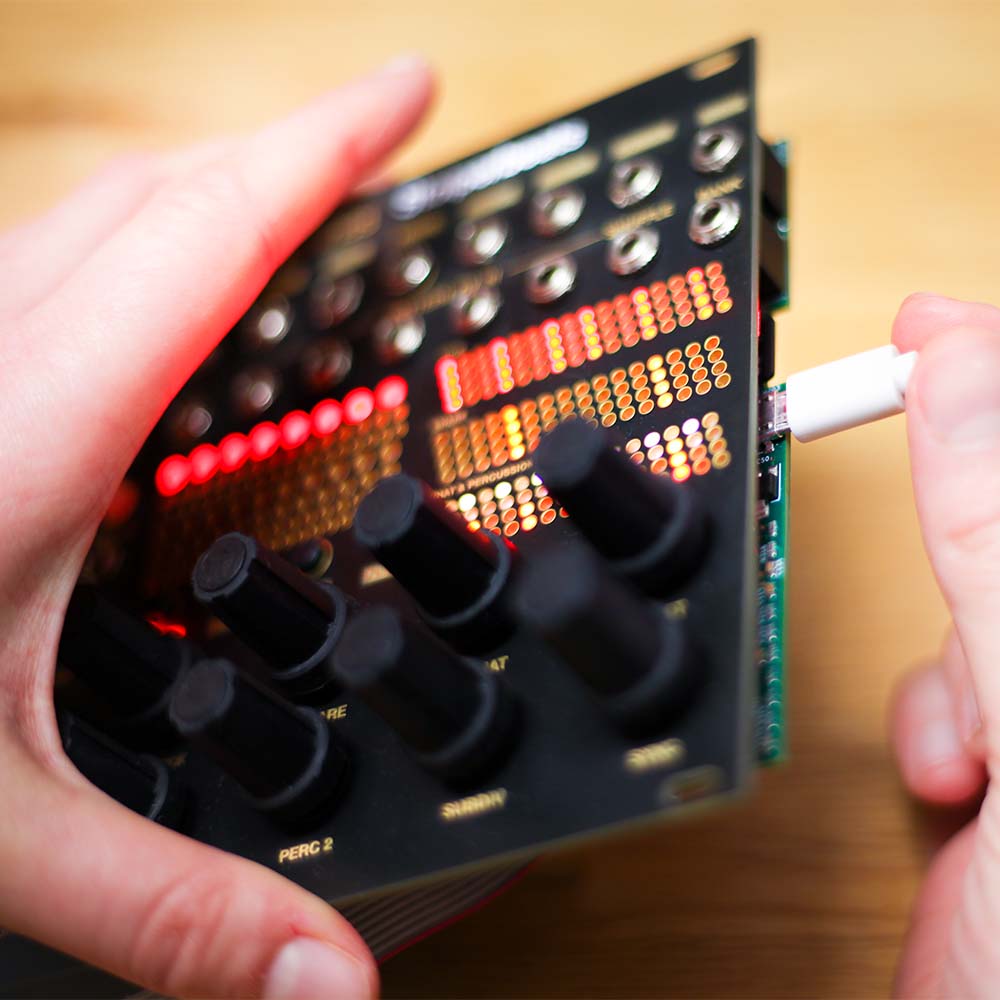

The USB port allows you to update Stolperbeats' firmware.

Please follow this link for the lastest firmware and a detailed guide on how to update.

makingsoundmachines.com/firmware/

Thank you#

Thank you for your time, enthusiasm and care, sharing insights and advice and for being there from the start.

Stijn and Priscilla Haring-Kuipers – TiNRS This is Not Rocket Science
Lauri Koponen – Vaski Embedded
Jan Hennig – Kabuki
Ben Wilson – DivKid
Konstantine – on Instagram
